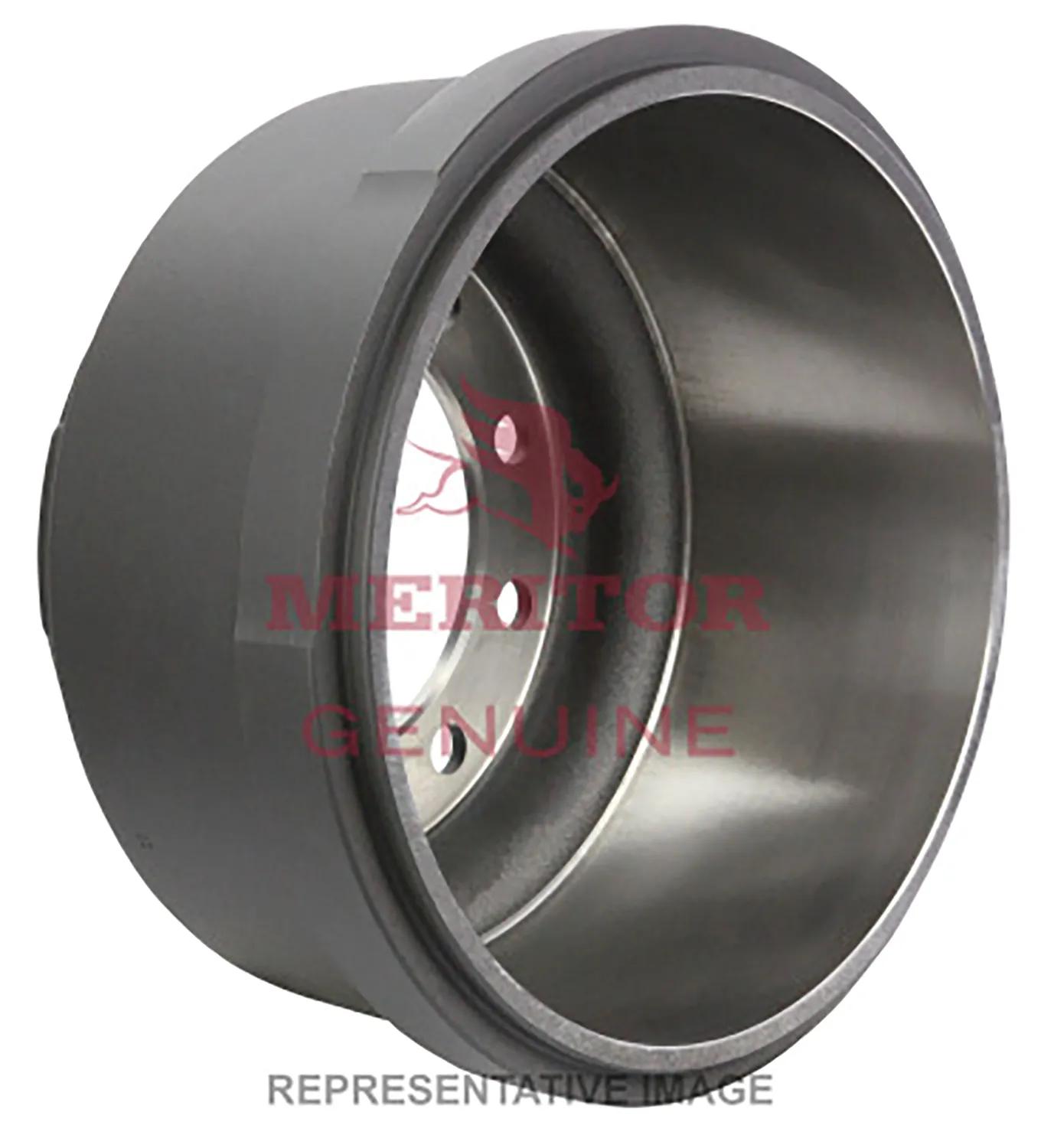

Brake Drum, 16-1/2 in x 8 in, 10 holes
#ROC85123520002
Product Overview
Meritor is the global braking leader both in size and capability for the commercial vehicle industry, supplying braking systems for trucks, trailers, buses and coaches. We are proud of our market-leading position with cost of ownership optimized through the applications of advanced predictive techniques and innovative manufacturing processes.
Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 9/16 in |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8 in |
| Brake Size | 16-1/2 in x 8 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 8-29/32 in |
| Bridge Width | 8 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 11/16 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Height | 12 in |
| Hole Size | 1 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 11-3/32 in |
| Overall Diameter | 18-29/32 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-1/2 in |
| Squealer Band Width (K) | 2-13/64 in |
| Type | Cast Balanced |
| VMRS Code | 013-017-006 |
| Wheel Type | Disc |
| Width | 8 in |
Interchanges & Equivalent parts:
| 3398-3782X |
| 37BD82B |
| 8235-85123520002 |
| 85-123520 |
| 85123520 |
| BD6800B |
| DW123520MTB |
| GUN 3782X |
| HD31M |
| TDA 85 123520 002 |
| TDA85123520002 |
| DB1658B |
| WWD 66808B |
