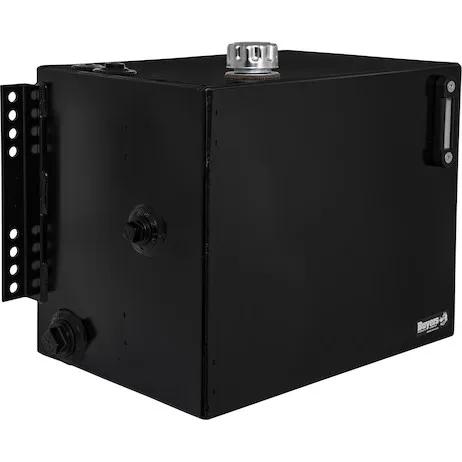

TANK 30 GAL STL W/TEM
#BUYSMR30S
Features & Benefits
- Welded brackets for easy mounting to the truck frame.
- Features 2 in. NPT suction/return port, 1-1/4 in. NPT return port, and 3/4 in. NPT load-sensing pump drain port.
- Durable 13 Ga HRPO steel construction with black powder-coated finish for superior corrosion resistance.
- Versatile reservoir works for many hydraulic/fluid storage applications.
- Fully internally baffled to reduce sloshing and help keep oil cool and properly flowing.
- Quarter-turn chrome filler/breather unit complete with basket strainer, magnetic drain plug, removable clean-out cover, and fluid level gauge included.
- Can accommodate a space-saving tank-mounted HFA5S return line filter.
Specifications
Additional Port Size | 1 1/4 NPT, 3/4 NPT |
Color | Black |
Depth | 17 in (43.18 cm) |
Finish | Powder Coat |
Hardware Included | No |
Height | 22 in (55.88 cm) |
Height (in.) | 22 |
Included Valve (Y/N) | No |
Integral Brackets (Y/N) | Yes |
Integral Level Gauge (Y/N) | Yes |
Magnetic Drain Plug (Y/N) | Yes |
Material | Carbon Steel |
Material Gauge | 13 |
Min Order Qty | 1 |
Mount Position | Side Mount |
Multiple Sale Qty | 1 |
Oil Level Gauge (Y/N) | Yes |
Product Code | 638 |
Product Common Use | Truck and Trailer Hydraulic Systems, Dump Trucks |
Reservoir Shape | Rectangle |
Return Line Filter Element Material | None |
Return Line Filter Included (Y/N) | No |
Sell Pack Type | Box |
Shipping Weight | 94.2 |
Suction Port Size | 2 NPT |
Temperature Gauge (Y/N) | Yes |
UPC | 724920066921 |
Usable Capacity | 30 Gal |
Width | 28-11/32 in (71.98 cm) |
Width (in.) | 28.35 |
Specifications
Length | 22-3/8 in (56.85 cm) |
