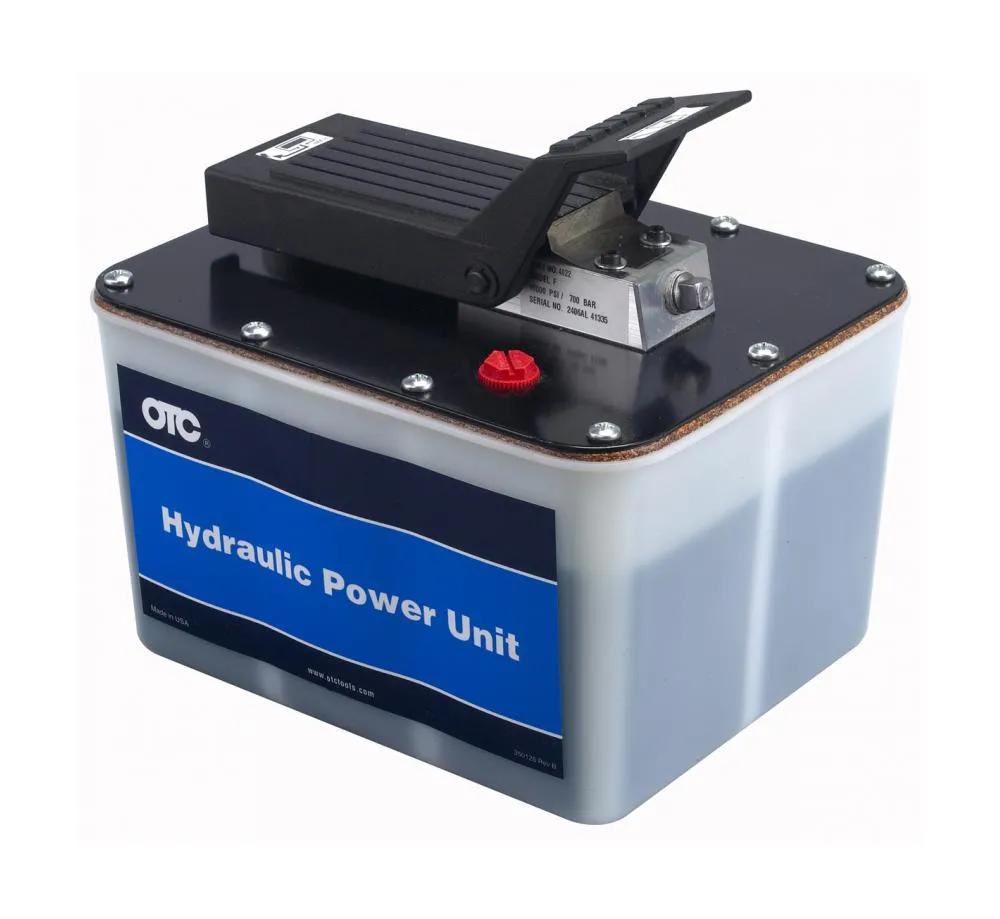

Treadle Pump - Air Actuated Hydraulic 10
#OTC4022
Product Overview
Ideal all-around power sources for dozens of body frame and alignment applications. They can be used with a variety of rams presses and hydraulic pullers operating at up to 10000 PSI.
Features & Benefits
- An internal relief valve protects the hydraulic components regardless of hydraulic pressure. In addition a two-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
- It develops 10000 PSI at 100 PSI air pressure. 3/8" NPTF oil port. 2 gallon (442 cu. in.) capacity plastic reservoir.
Specifications
| Contents | (1) Pump |
| Recommended Working Air Pressure | 100 PSI |
| Treadle Pump Foot Operated | Yes |
| Treadle Pump Maximum PSI Output | 10,000 PSI |
