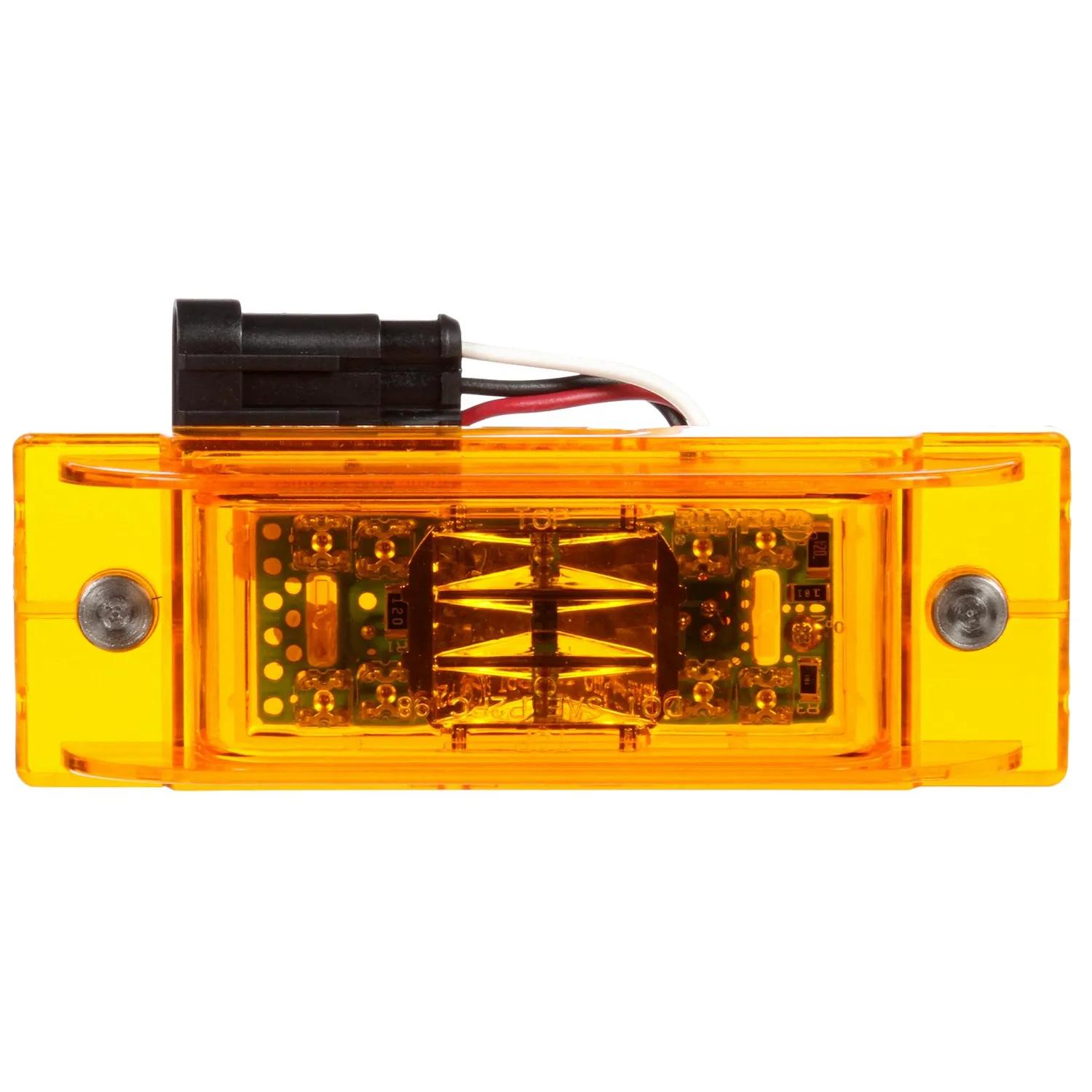

Truck-Lite 21 Series Marker Clearance Light, 16 Diode LED, Amber Yellow, Rectangular, Hardwired, Polycarbonate Lens
Product Overview
21 Series auxiliary marker clearance light featuring 16 LED diodes for superior brightness and faster start time than incandescent lamps. Yellow rectangular lens made of durable polycarbonate, hardwired with a 12" mating harness. Designed as a popular replacement on Freightliner vehicles where the lamp is not mounted on a curved location. Electronics are completely sealed in epoxy to resist corrosion and moisture, making it less susceptible to shock and vibration. Includes P2 light function, 2 screw mounting, and AMP 282105-1 connector. Operates at 12V with a current draw of 0.16 amp (major) and 0.03 amp (minor).Marker Clearance Light, 16 Diode, LED Bulb, Hardwired, 2 Screw, Polycarbonate, Yellow, 2.03 in H, 0.16 in L, Light Function: P2, PC, 21 Series, Rectangular, 12 V, Warranty: Limited Lifetime, 6 in W
Features & Benefits
- Popular replacement on Freightliner vehicles where lamp is not mounted on a curved location
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Less susceptible to shock and vibration
- LED lamps offer superior brightness and faster start-time than incandescent versions
- Recommend replacing the incandescent lamp and existing harness
Specifications
| Bulb Type | LED |
| Common Size | 2 in |
| Connection Type | Hardwired |
| Contents | Lamp, Plug |
| Depth | 1-9/32 in |
| Diamond Shell (Y/N) | No |
| Height | 2-1/32 in |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 6 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | 2 Screw |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Plug Side One | Metripack |
| Plug Side Two | Metripack |
| Quantity | 1 |
| Reflectorized (Y/N) | No |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| UPC | 735111063421 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.4 lb |
| Width | 6 in |
| Wire Gauge | 16 ga |
| Current Rating | 0.16 amp (major), 0.03 amp (minor) |
| Light Function | P2, PC |
| Product Line | 21 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 841321094Y |
| TL21094Y |
| TLD21094Y |
| TRU21094Y |
| 21094Y |
| 8413-21094Y |
| LIT21094Y |
| TL 21094Y |
| GRT47073 |
| A0627561000 |
