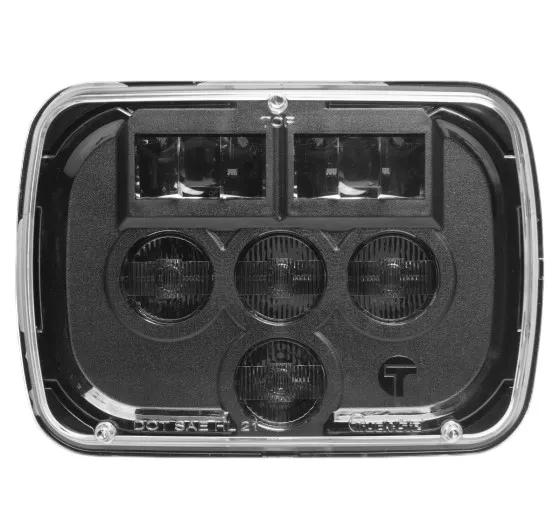

Truck-Lite 37 Series Direct LED Headlight 5x7 Rectangular with Heated Option, High & Low Beam
Product Overview
Introducing the latest evolution in LED lighting. Truck-Lite's 37 Series Direct LED Headlights offer a modern and sleek look and are designed with projector-like optics technology that significantly improves lighting performance, including a more uniform beam pattern with increased foreground lighting and strategically aimed light output at a longer and wider distance. Available in 7" round, 5"x7" rectangular, and 4"x6" sizes for high and low beam applications. Features embedded heating technology to prevent snow and ice buildup in even the worst winter conditions.Direct Headlight, 6 Diode, High Beam and Low Beam, Hardwired Connector, LED, Die-Cast Aluminum, Polycarbonate Lens, Clear, 2 to 3.70 A at 12.8 V, 1.05 to 1.90 A at 25.8 V, 3.1 in H, 5.591 in L, Rectangular, Standards: FMVSS 108, CMVSS 108, DOT, SAE, 7.819 in W
Features & Benefits
- Next Generation Optics Technology provides Best-in-Class beam pattern and increases light output where you need it
- Rugged construction with military grade e-coat aluminum housing and polycarbonate lens for front-end protection
- Designed with solid-state internal components impervious to shock and vibration
- DOT Compliant
- Options with Heated Technology, heats consistently under 10 degrees C / 50 degrees F
- Durable rectangular 5"x7" design with 6 diodes for both high and low beam patterns, offering reliable and versatile lighting for improved visibility in various conditions
Specifications
| Dimension | 70mm (dia.) x 19mm (d) |
| Height | 3.1 in |
| Length | 5.591 in |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Shape | Rectangular |
| Type | 6 Diode, High Beam and Low Beam |
| Weight | 2.3 lb |
| Width | 7.819 in |
| Connector Type | Hardwired |
| Current Rating | 2 to 3.70 A at 12.8 V, 1.05 to 1.90 A at 25.8 V |
| Finish | Military grade e-coat aluminum |
| Housing Color | Black |
| Housing Material | Die-Cast Aluminum |
| Lamp Type | LED |
| Lens Color | Clear |
| Mounting Type | Direct |
| Operating Temperature | Heats consistently under 10 degrees C / 50 degrees F |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Product Category | Direct Headlight |
Interchanges & Equivalent parts:
| 37450C3 |
