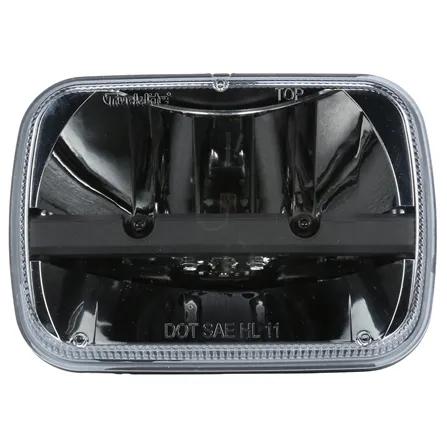

Truck-Lite LED Sealed Beam Headlight, Rectangular 5x7 in, Polycarbonate Lens, 12-24V
#TRL27450C
Product Overview
Complex reflector 5"x7" LED rectangular headlight with 2 diodes, polycarbonate lens, e-coat aluminum housing, designed for 12-24V systems. Provides bright, crisp white light close to daylight color with a wide, even beam pattern for enhanced visibility and safety. Durable construction with military-grade components ensures long-lasting performance in tough conditions. Energy-efficient LED technology offers up to 50 times longer life than halogen bulbs and reduces power consumption, lowering maintenance costs. Proudly made in the USA.Headlight, LED, Aluminum, Polycarbonate Lens, 1.45 to 2.95 A, 7.9 in L, Standards: CMVSS 108, FMVSS 108, Dot Compliant, 12 to 24 V, Warranty: 3 Years, 5.62 in W
Features & Benefits
- When Properly Mounted, Is Designed To Conform To The Requirements Listed In The DOT FMVSS108 & The Tc CMVSS-108 Standards. The DOT Symbol On The Headlight Signifies That It Is Street Legal.
- Drop-in Replacement For ANSI #6052, 6053, H6054 And Hp6054 Standard Headlamps
- Uses Standard H4, 3-blade Wiring Connector
- Up To 50x Longer Life Than Halogen Technology
- Designed At 12 Volts, 1.5 Amp Low Beam 1.2 Amp High Beam. Designed At 24 Volts, 0.8 Amp Low Beam 0.7 Amp High Beam
- Best-in-class Beam Pattern & Dramatically Improves Light Projection Distance & Overall Visibility
- Durable Housing & Non-yellowing, Hard-coated Polycarbonate Lens Offer Optimum Protection Against Damage From Impact, Roadside Debris & Other Hazards
- Recommended Accessories: 96630 H4 To H13 Adapter (JK Models Only) Or 96830 H4 To H13 PWM Adapter (JK Models Only)
- Excellent Option For Light, Medium & Heavy-duty Trucks, Off-road & Agricultural Vehicles, Classic Cards, & More
- Provides a crisp, bright white light closer to daylight color for safer, more enjoyable driving
- Built using solid-state technology and military-grade components for durability in tough conditions
Specifications
| Amps | 0.7 to 1.5 Amp (Low/High Beam at 12V), 0.8 to 1.2 Amp (Low/High Beam at 24V) |
| Color | White |
| Depth | 4-5/8 in |
| Height | 5-5/8 in |
| Kit (Y/N) | No |
| LED | Yes |
| Length | 7.9 in |
| Lens Material | Polycarbonate |
| Lens Width | 7 in |
| Material | Die Cast Aluminum/Polycarbonate |
| Number Of Wires | 3 |
| Product Type | Headlight |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT Compliant |
| Type | Headlight |
| VMRS Code | 034-001-000 |
| Volt | 12-24 V |
| Weight | 2.61 lb (1.18 kg) |
| Width | 7-29/32 in |
| Wire Gauge | 16 ga |
| Connector Type | H4 Connector |
| Current Rating | 0.7 to 1.5 Amp (Low/High Beam at 12V), 0.8 to 1.2 Amp (Low/High Beam at 24V) |
| Finish | Black Powder Coated |
| Housing Color | Black |
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lens Color | White |
| Standards | FMVSS 108, CMVSS 108, DOT Compliant |
| Voltage Rating | 12-24 V |
| Warranty | 3 Years |
| Product Category | Headlight |
Interchanges & Equivalent parts:
| 191A-0070 |
| GRT90951-5 |
| RTLEDHL5X7HILO |
