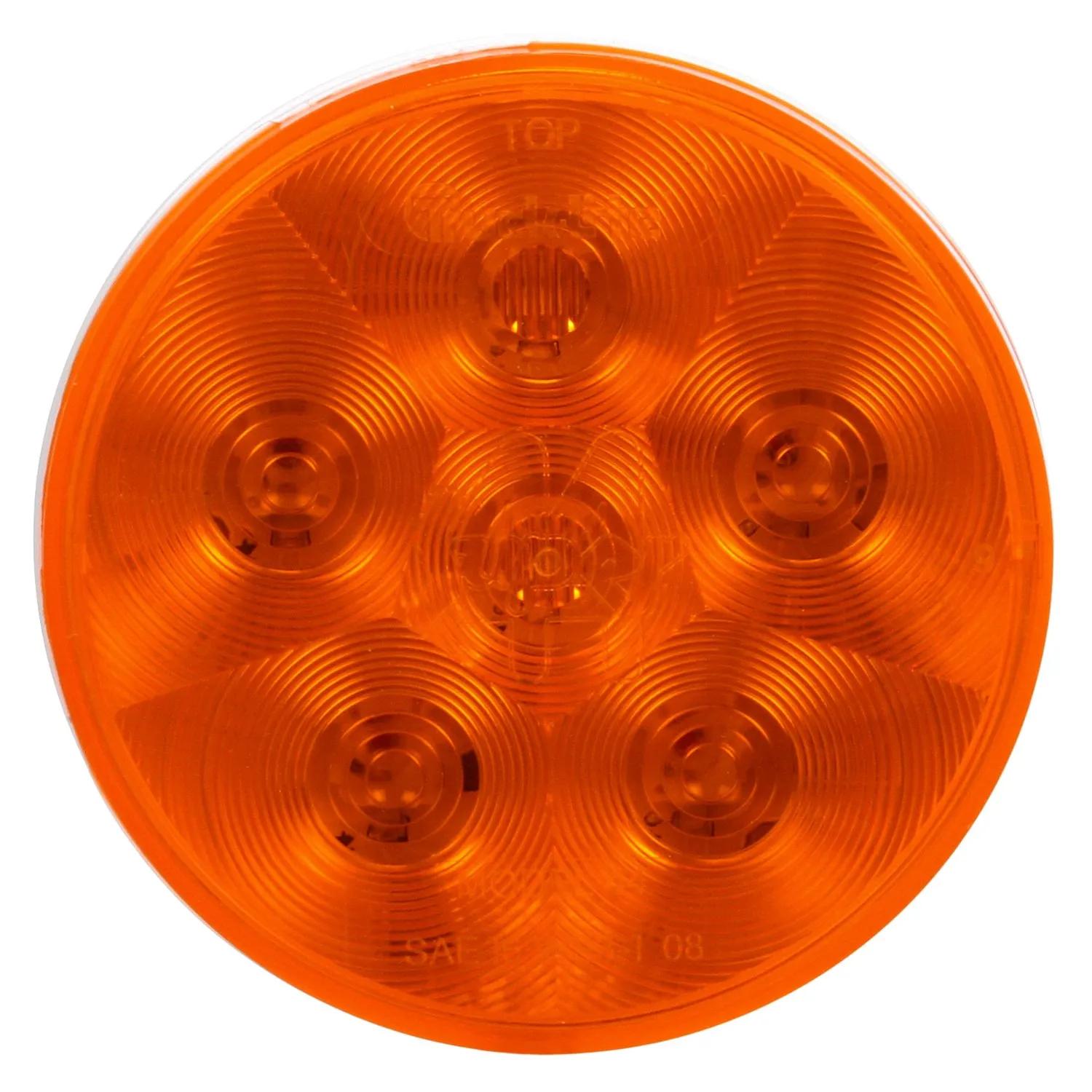

Truck-Lite Super 44 Series Round Yellow LED Strobe Light, 6 Diode, 12V, Class II, Hardwired
#TRL44218Y
Product Overview
Super 44 Series round yellow LED strobe light featuring 6 diodes, out-phase quad flash pattern, and turn signal override. Hardwired with Packard Connector 282087 and Weather Connector 12015791. Designed with a slim profile for mounting in limited spaces. Fully encapsulated electronics protect against corrosion and moisture. Complies with FMVSS 108, CMVSS 108, DOT, and SAE standards. Includes Truck-Lite limited lifetime warranty.Strobe Lamp, Super 44, 6 Diode, Hardwired, LED, Grommet, Acrylic, Yellow, 0.99 in H, 4.31 in L, Class II SAE, Round, Standards: FMVSS 108, CMVSS 108, DOT, SAE, 12 V, Warranty: Limited Lifetime, 4.31 in W
Features & Benefits
- New Super 44 Series Rear Turn Strobe lamp provides a quad flash pattern with solid state LED technology
- Turn signal override feature momentarily overrides strobe function allowing lamps to signal for turn functions
- Lateral system allows alternating flash patterns without the need of a separate box, saving on cost and installation time
- Uses Truck-Lite 6-Diode round optics pattern to complement S/T/T and B/U applications
- Fully encapsulated electronics and hardwired design protect the lamp from corrosion and damage caused by chemicals and moisture
- Slim profile design for mounting in areas of limited space
- Using 2 in-phase or 2 out-phase lamps provides synchronized flash; 1 in-phase and 1 out-phase lamp provides alternating flash
- Features the Truck-Lite limited lifetime warranty
Specifications
| Connection Type | Hardwired |
| Contents | Super 44 Series Strobe w/ TS Override, Out-Phase Lamp |
| Depth | 63/64 in |
| Height | 0.99 in |
| Housing Color | White |
| Length | 4-5/16 in |
| Lens Color | Yellow |
| Material | Acrylic |
| Mounting Type | Grommet |
| Quantity | 1 |
| SAE Class | Class II |
| Shape | Round |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Super 44, 6 Diode |
| UPC | 735111000000 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.79 lb (0.36 kg) |
| Width | 4-5/16 in |
| Current Rating | 0.7 amp |
| Light Type | LED |
| Product Category | Strobe Lamp |
Interchanges & Equivalent parts:
| 417SR2 |
| 44218YTLT |
| 8413-44218Y |
| LIT44218Y |
| TL 44218Y |
| TL 44218Y |
| TLD44218Y |
| 44218Y |
