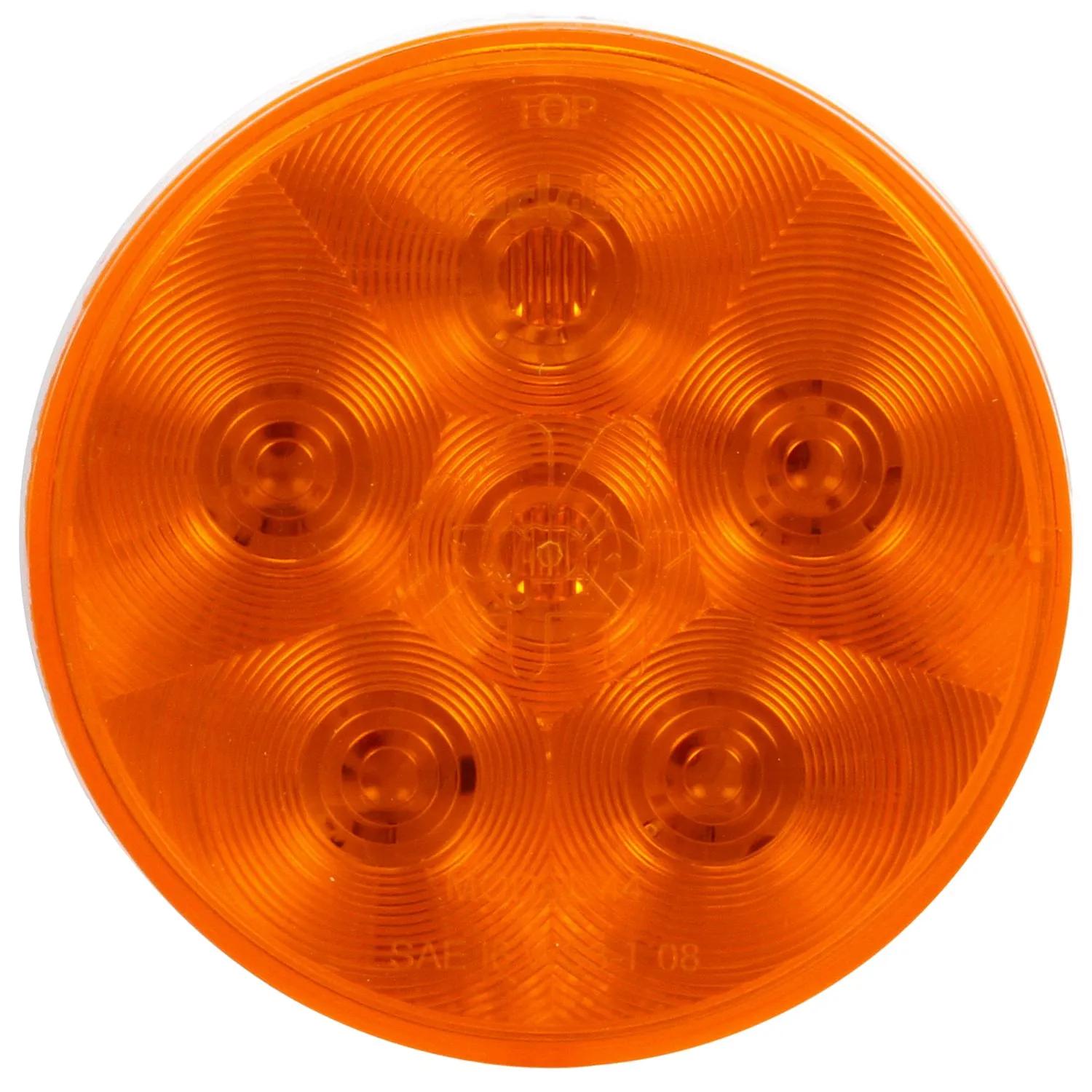

Truck-Lite Super 44 Series Round Yellow LED Strobe Light, 6 Diode, 12V, Hardwired, Class II
#TRL44217Y
Product Overview
Super 44 Series in-phase LED strobe light featuring 6 diodes, round yellow acrylic lens, Class II SAE rating, hardwired with Packard Connector 282087 and Weather Connector 12015791, 12V operation. Designed for rear turn signal override with quad flash pattern and solid state LED technology. Slim profile for mounting in limited spaces, fully encapsulated electronics protect against corrosion and moisture.Strobe Lamp, Super 44, 6 Diode, Hardwired, LED, Grommet, Acrylic, Yellow, 0.99 in H, 4.31 in L, Class II SAE, Round, Standards: FMVSS 108, CMVSS 108, DOT, SAE, 12 V, Warranty: Limited Lifetime, 4.31 in W
Features & Benefits
- New Super 44 Series Rear Turn Strobe lamp provides a quad flash pattern with solid state LED technology
- Turn signal override feature momentarily overrides strobe function allowing lamps to signal for turn functions
- Lateral system allows alternating flash patterns without the need of a separate box, saving on cost and installation time
- Uses Truck-Lite 6-Diode round optics pattern to complement S/T/T and B/U applications
- Fully encapsulated electronics and hardwired design protect the lamp from corrosion and damage caused by chemicals and moisture
- Slim profile design for mounting in areas of limited space
- Using 2 in-phase lamps or 2 out-phase lamps provides synchronized flash; 1 in-phase and 1 out-phase lamp provides alternating flash
- Features the Truck-Lite limited lifetime warranty
Specifications
| Connection Type | Hardwired |
| Contents | Super 44 Series Strobe w/ TS Override, In-Phase Lamp |
| Depth | 63/64 in |
| Height | 0.99 in |
| Housing Color | White |
| Length | 4-5/16 in |
| Lens Color | Yellow |
| Material | Acrylic |
| Mounting Type | Grommet |
| Quantity | 1 |
| SAE Class | Class II |
| Shape | Round |
| Size | 4 in |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Super 44, 6 Diode |
| UPC | 735111000000 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.79 lb (0.36 kg) |
| Width | 4-5/16 in |
| Current Rating | 0.7 amp |
| Light Type | LED |
| Product Category | Strobe Lamp |
Interchanges & Equivalent parts:
| 417SA2 |
| TRU44217Y |
| 44217YTLT |
| 8413-44217Y |
| LIT44217Y |
| TKL44217Y |
| TL 44217Y |
| TL 44217Y |
| TLD44217Y |
| 44217 |
| 44217Y |
