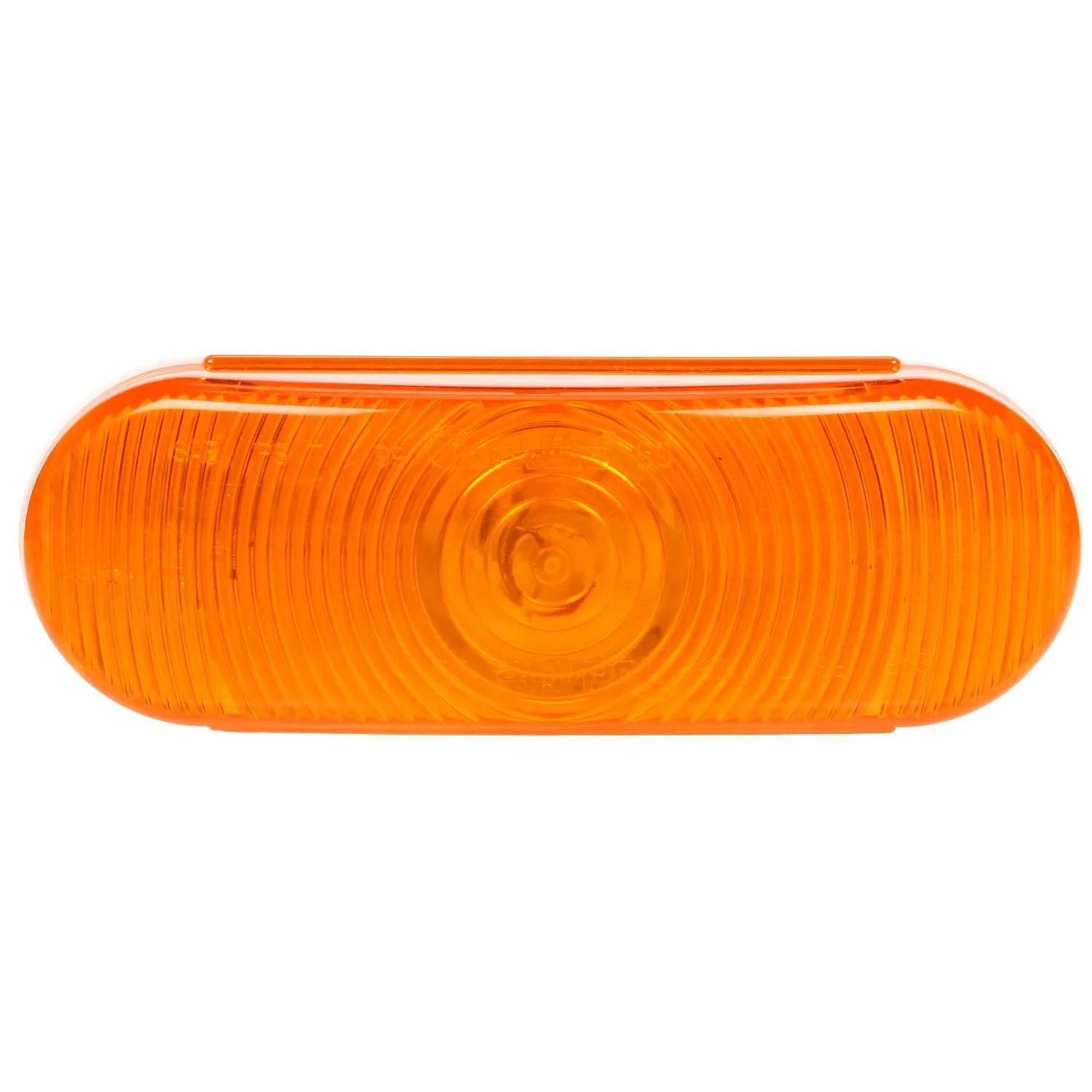

Turn Signal, Amber & Yellow, Oval
#TRL60001Y
Product Overview
Super 60, Vertical/Horizontal Mount, Incandescent, Yellow Oval, 1 Bulb, Rear, Front Turn Signal, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Mount horizontally or vertically
- Upgrade to Truck-Lite LED lighting systems using 60 Series LED Products
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.49 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 6-1/2 in (16.51 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Rear & Front |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 60001Y |
| 55773 |
| 15200405 |
| 841360001Y |
| 706254 |
| 70625499 |
| 94890056 |
| HT50603367 |
| TL60001Y |
| TLD60001Y |
| TRU60001Y |
| MTL06000100Y |
| 1605176 |
| 800-250420A |
| 8413-60001Y |
| LIT60001Y |
| TL 60001Y |
| TL 60001Y |
| 421KA |
| 55773GR0 |
| GRT91740 |
| KT3260A |
| 91740 |
| 7190 |
| 402761 |
| 67000 |
