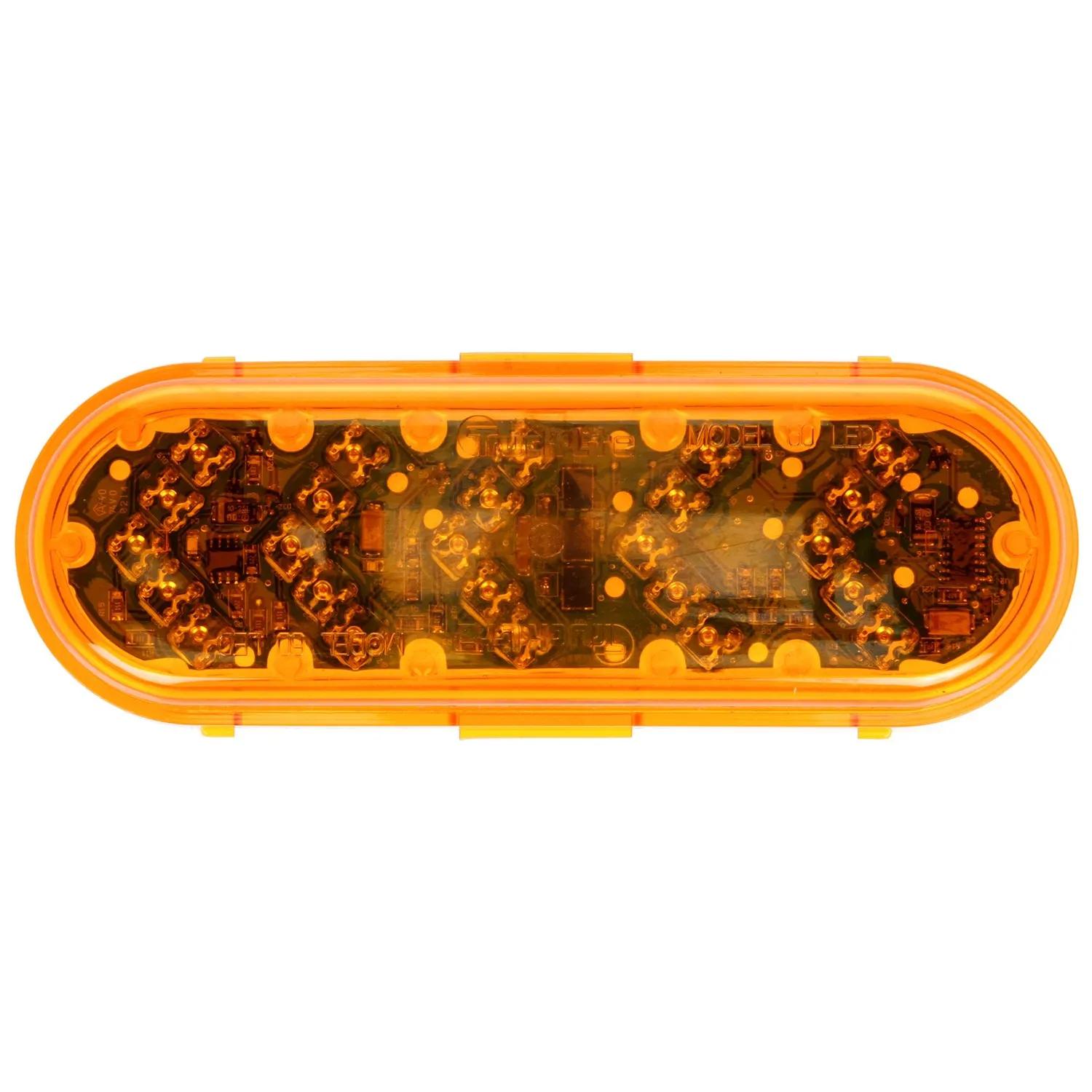

Turn Signal, Amber & Yellow, Oval
#TRL60080Y
Product Overview
60 Series, Sequential Arrow, LED, Yellow Oval, 25 Diode, Auxiliary Turn Signal, Black Grommet Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit
Features & Benefits
- 26 Diode for Auxiliary Turn Lamps and 25 Diode for Sequential Arrow Lamps
- Auxiliary turn is a two function lamp and compiles with SAE 592e and 2042 on both functions
- Use part# 60315Y for LED Side Turn applications SAE J2039
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.12 amp |
| Current Minor | 0.08 amp |
| Depth | 1-5/8 in (4.14 cm) |
| Height | 2-5/16 in (5.87 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 6-1/2 in (16.51 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-3, Female |
| Position | Auxiliary |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Turn Signal |
| VMRS Code | 034-003-057 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 1150147T |
| 60080Y |
| 571079 |
| 970123533 |
| 841360080Y |
| HT50601794 |
| TL60080Y |
| TLD60080Y |
| LED8776YX |
| 60080Y1 |
| TRU60080Y |
| 420QA |
| 8413-60080Y |
| LED67Y |
| LIT60080Y |
| TL 60080Y |
| TL 60080Y |
| PA12033 |
| 111925 |
| 3160080Y |
| 7315 |
