Turn Signal, Amber & Yellow, Oval
#TRL60422Y
Product Overview

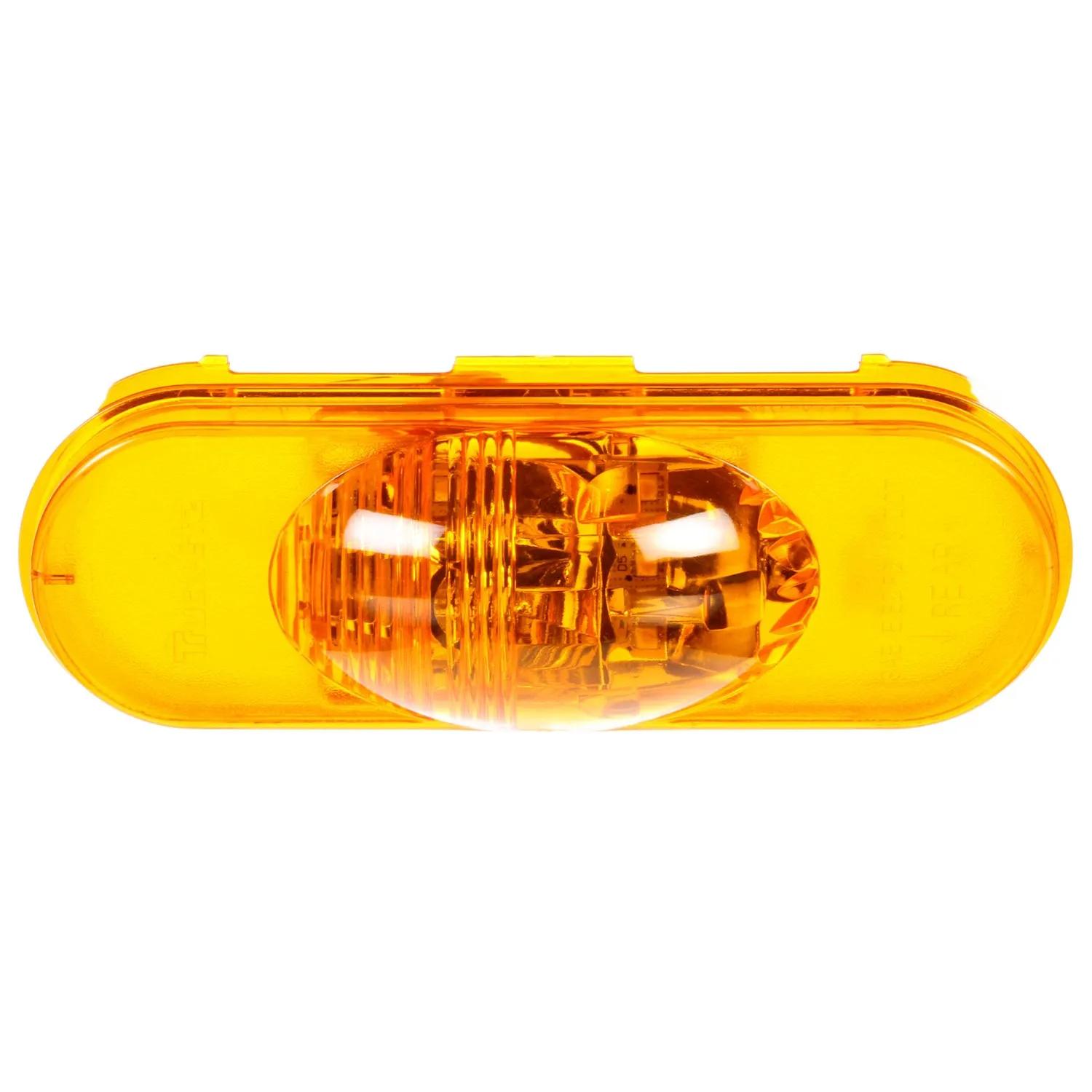

60 Series, LED, Yellow Oval, 6 Diode, Side Turn Signal, Hardwired, Stripped End, 12V
Features & Benefits
- Sae Code: P2, E2
- Engineered to withstand the toughest working environments on earth
- Sealed design locks moisture out
- LED have no filament, therefore are not susceptible to shock and vibration, a major cause or failure for lamps with incandescent bulbs
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- Backed by industry-leading Lifetime Warranty
- Recommend grommet part number LIT60700 for mounting
- 6 Diode design, signal function at 0.6 amp, marker function at 0.035 amp
- Commonly mounted at 'mid-point' on trailers or 'no-zone' areas on tractors
- Complies with SAE J2039 standards; a requirement by California title 13 law
Specifications
| Color | Jaune |
| Common Size | 2 in (5.08 cm) |
| Contents | Lampe |
| Current Major | 0,29 amp |
| Current Minor | 0,03 amp |
| Depth | 1-15/16 in (4.93 cm) |
| Height | 2-5/16 in (5.87 cm) |
| Kit (Y/N) | No |
| Length | 6-1/2 in (16.51 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Montage à oeillet |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Side |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Turn Signal |
| VMRS Code | 034-003-057 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 12-1/2 in (31.75 cm) |
Interchanges & Equivalent parts:
| 60422YTLT |
| 8413-60422Y |
| 60422Y |
