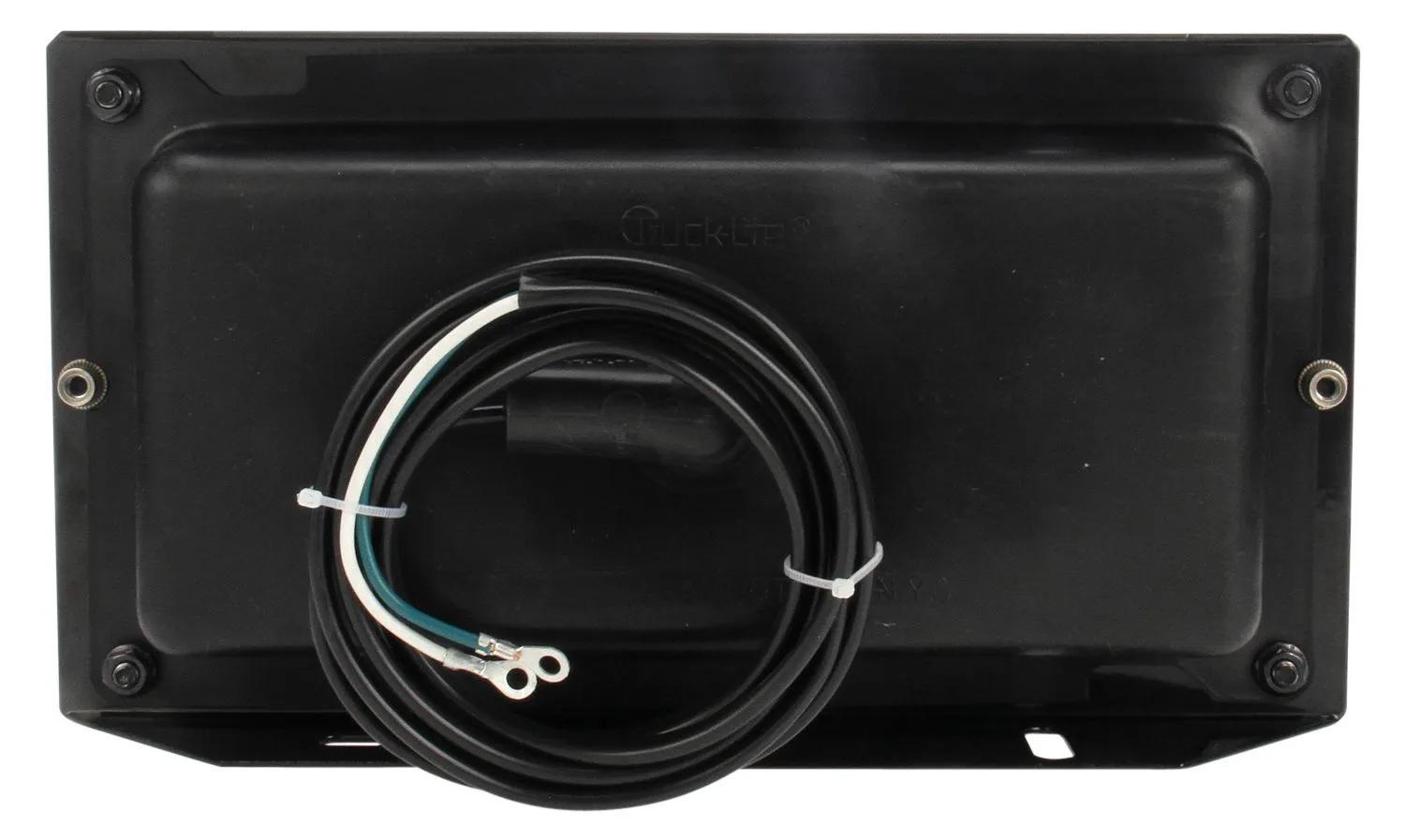

Turn Signal, Amber & Yellow, Rectangular
#TRL40812
Product Overview
40 Series, Wide Turn Right Hand Side, LED, Yellow Rectangular, 84 Diode, Auxiliary Turn Signal, Black Grommet Mount, PL-2, Ring Terminal, 12V
Features & Benefits
- Features large outer lens for greater visibility
- Includes slotted bracket for ease of installation and adjustment
- Available with enclosed housing for extra protection
- Use part #'s 40812 and 40830 for LED versions
Specifications
| Color | Amber |
| Common Size | 7 in (17.78 cm) |
| Current Major | 0.65 amp |
| Current Minor | 0.43 amp |
| Depth | 4-3/16 in (10.64 cm) |
| Height | 6-7/8 in (17.48 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 12-29/32 in (32.79 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Ring Terminal |
| Position | Auxiliary |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Rectangular |
| Technology | LED |
| Type | Turn Signal |
| VMRS Code | 034-004-273 |
| Volt | 12V |
| Width | 12-29/32 in (32.79 cm) |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 41315006 |
| 418WTA |
| TL40812 |
| 8413-40812 |
| LIT40812 |
| TL 40812 |
| TL 40812 |
| TLD40812 |
| TLT 40812 |
| 40812 |
