2 POINTS

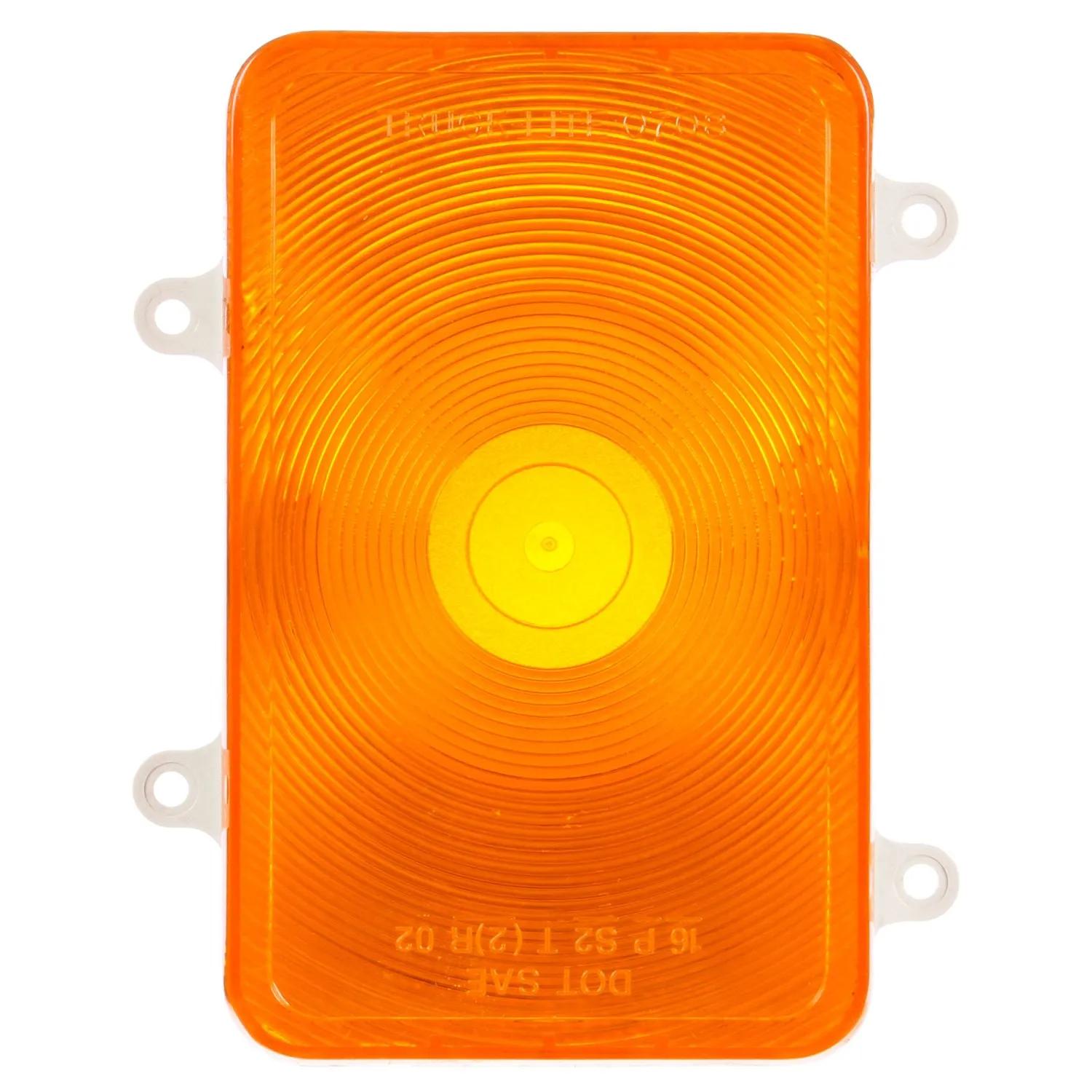

Turn Signal, Amber & Yellow, Square
#TRL07097
Product Overview
Incandescent, Yellow Rectangular, Rear Turn Signal, 4 Screw Mount, Socket Assembly
Features & Benefits
- Polycarbonate lens and housing are sealed
- Bulb socket cams-in for ease of repair/replacement (sold separately)
- Recess mounts using two screws at 30"
- centers and two screws at 42"
- centers
- Wide variety of lighting products
Specifications
| AMP Draw | 2.1 amp |
| Color | Amber |
| Common Size | 4 in |
| Contents | Turn Signal |
| Depth | 2-1/32 in |
| Height | 5-7/32 in |
| Horizontal Beam Angle | 61 deg |
| Kit (Y/N) | No |
| Length | 6-29/64 in |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| # of Diodes | 2 |
| Plug Side Two | No Plug |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-010 |
| Volt | 12V |
| Width | 6-29/64 in |
Interchanges & Equivalent parts:
| 07097 |
| 07097-3 |
| 8413-07097 |
| LIT07097 |
| TL 07097 |
| TL07097 |
| TLD07097 |
