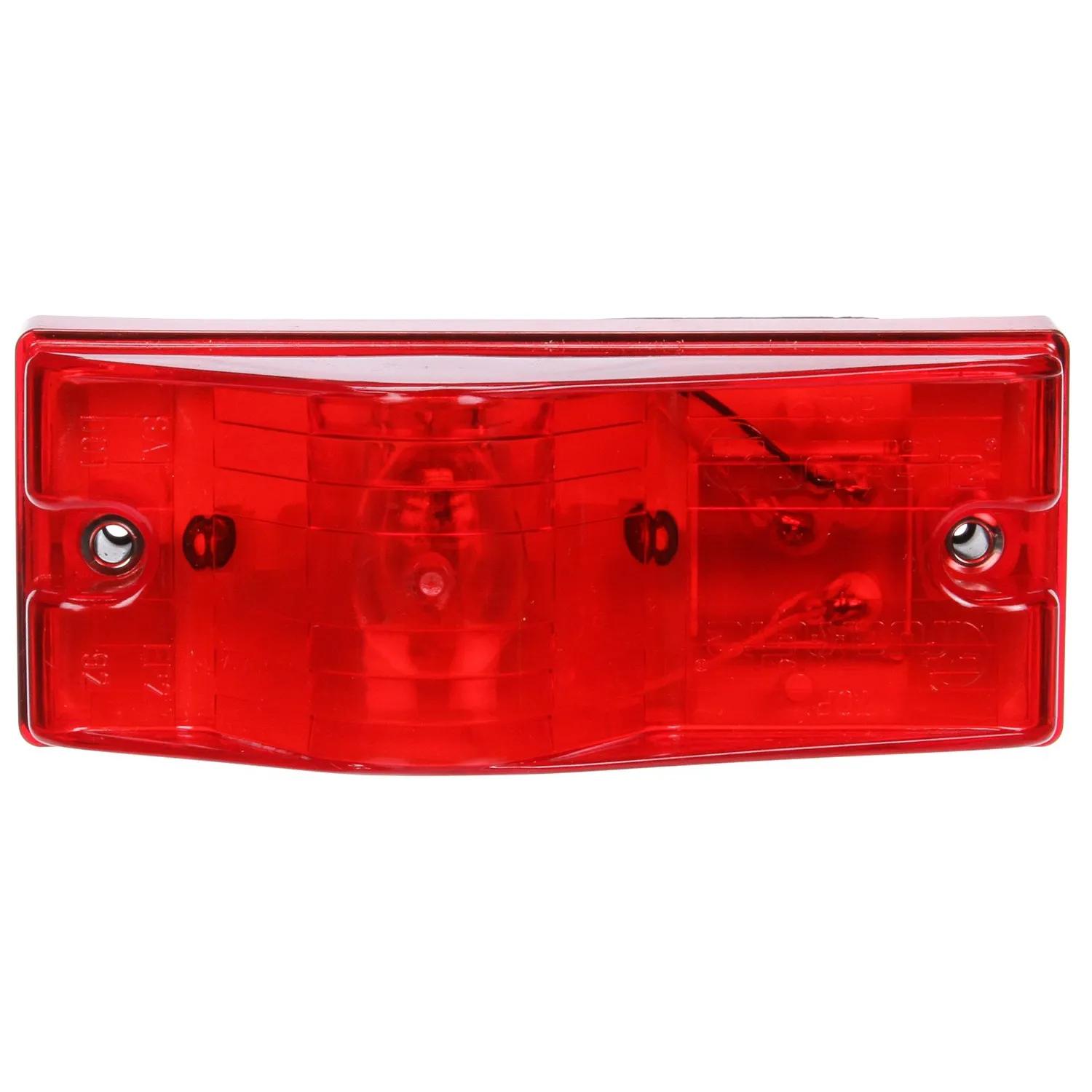

Turn Signal, Red, Rectangular
#TRL22004R
Product Overview
22 Series, w/Gasket, Incandescent, Red Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Sealed design protects against moisture and dirt intrusion
- Compatible with various truck applications for versatile use
- Side turn or auxiliary turn functions improve signaling safety
- Easy integration into existing lighting systems for convenience
- Incandescent technology provides reliable illumination performance
- Dual contact marker/clearance functions enhance visibility on the road
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug,Gasket |
| Current Major | 2.1 amp |
| Current Minor | 0.49 amp |
| Depth | 2-13/32 in (6.12 cm) |
| Height | 2-13/32 in (6.12 cm) |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Side |
| Reflectorized (Y/N) | No |
| Series | 22 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-081 |
| Volt | 12V |
| Width | 5-15/16 in (15.09 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 52005007 |
| 22004R |
| HT50602221 |
| TL22004R |
| TLD22004R |
| 16511939 |
| 8413-22004R |
| LIT22004R |
| TL 22004R |
| TL 22004R |
| TL-22004R |
| TRU22004R |
| 841322004R |
| 70636299 |
