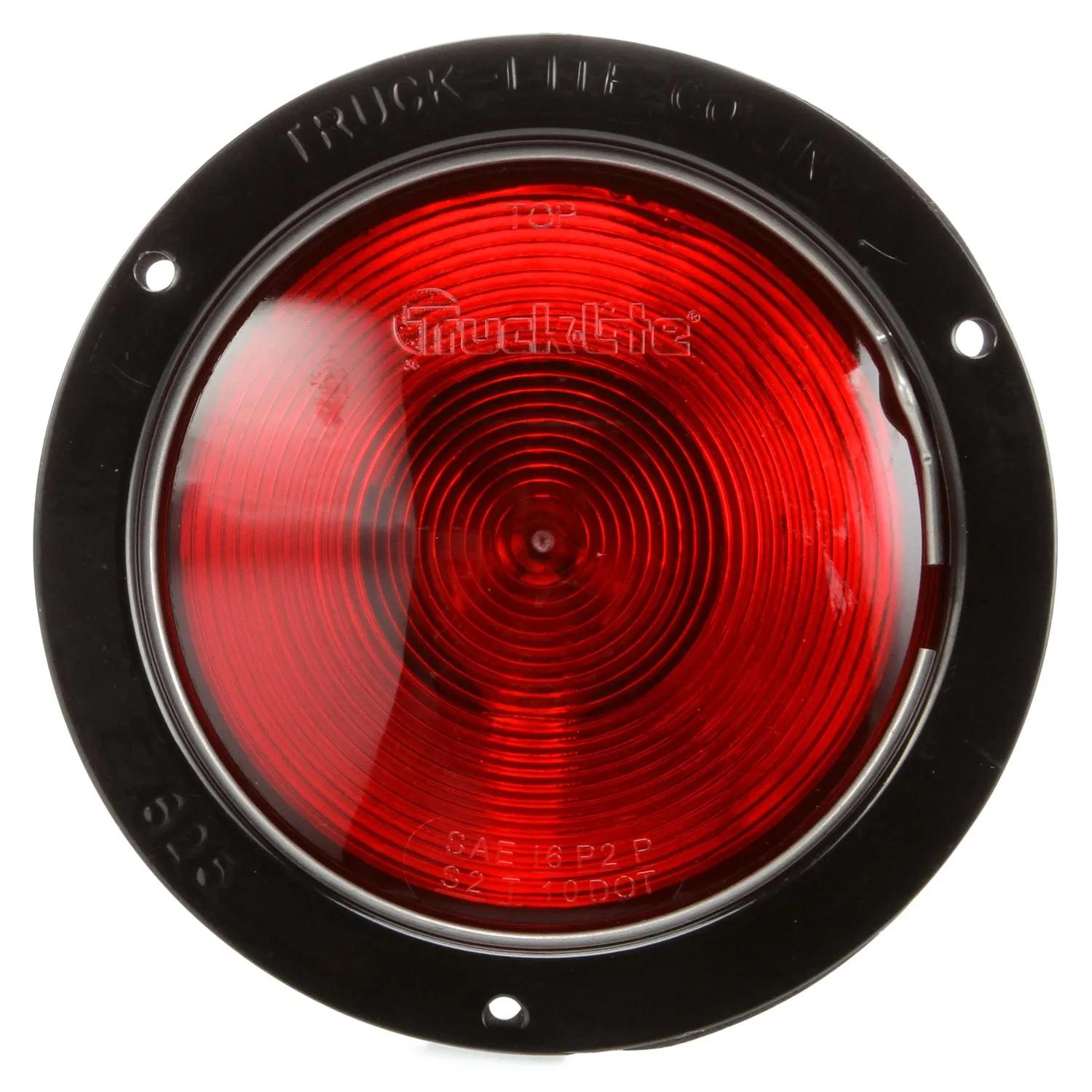

Turn Signal, Red, Round
#TRL81300R
Product Overview
Bulb Replaceable, Incandescent, Red Round, 1 Bulb, Rear Turn Signal, Black Flange Mount, Hardwired, Blunt Cut, 12V
Features & Benefits
- Flush mount lamp with recessed lens
- Stainless steel retaining ring holds lens in place
- Upgrade to Truck-Lite LED lighting systems using Super 44 Rear Turn Products
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Single Contact |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 2-19/64 in (5.84 cm) |
| Function | I, S |
| Height | 5-3/8 in (13.67 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 5-3/8 in (13.67 cm) |
| Lens Material | Polycarbonate |
| Material | Stainless Steel |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 5-3/8 in (13.67 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 411R |
| 4200539 |
| 81300R |
| 841381300R |
| HT50602841 |
| TL81300R |
| TLD81300R |
| 4211 |
| 4-91001 |
| 7662601 |
| 8413-81300R |
| LIT81300R |
| TL 81300R |
| TL 81300R |

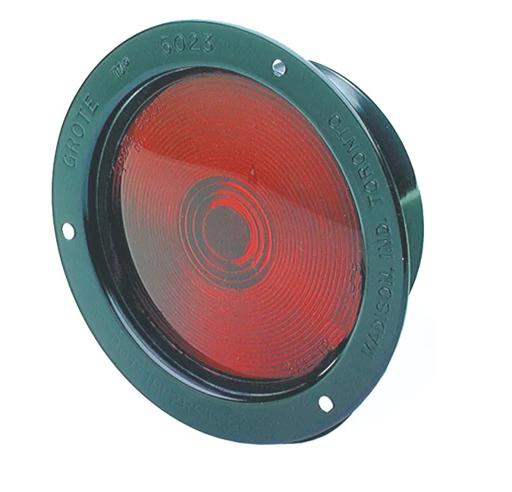

| 55092 |
| 50232GR0 |
| TL4305R |
