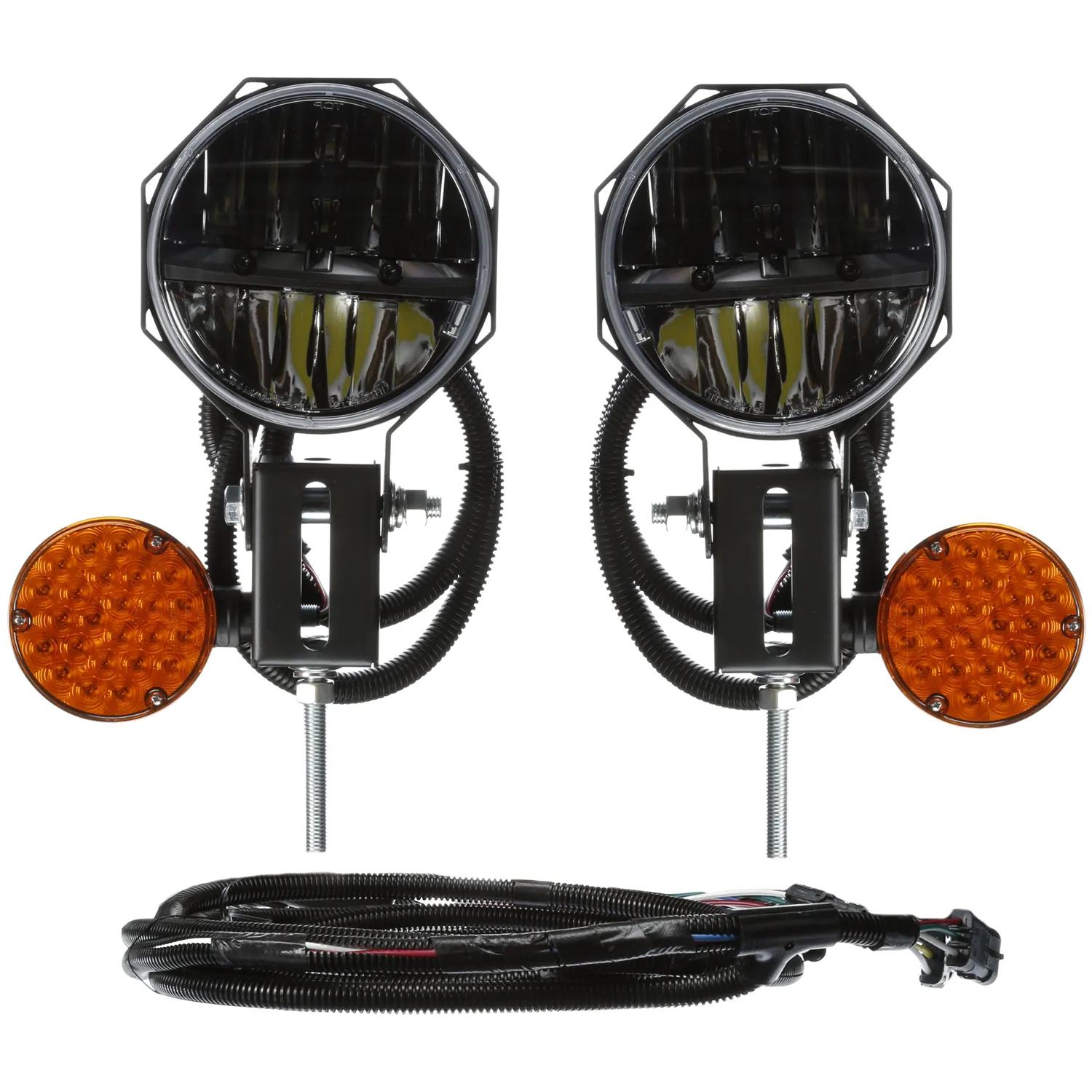

Universal, LED, 7 in. Round, Snow Plow Light, 23 Diode, inlycarbonate, 12-24V, Kit
#TRL80880
Product Overview
Universal, LED, 7 in. Round, Snow Plow Light, 23 Diode, Polycarbonate, 12-24V, Kit
Features & Benefits
- Lamps Are Hard Wired, w/ Fully Emcapsulated Electronics To Protect From Damage Caused By Corrosive Elements & Moisture
- Headlamp Complex Reflector Design Spreads Lightin In A Clearn, Uniform Pattern
- Pedestal Lamp Features A Unique LED Array w/ A Full Pattern Appearance
- Multi-Volt Design, Operational From 9 To 33 Volts At 12.8 Operation, High Beam Functions Draws 3.60 Amp, Low Beam Function Draws 1.80 Amp.
- Pedestal Lamp Has 21 LEDs Designed At 12.8 Volts, 0.625 Amp Major Funciton & 0.046 Amp Minor Function
- Complete Kit Includes 80878 Rh Assembly, 80879 Lh Assembly, 80898 Harness
Specifications
| Color | White |
| Contents | 7" Round LED Snow Plow Kit, Complete System |
| Depth | 3-9/16 in (9.04 cm) |
| Dimension | 15/24 in L x 3.46 in D |
| Height | 15-15/64 in (38.68 cm) |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Lens Width | 7 in (17.78 cm) |
| Material | Steel |
| Mount Type | Stud Mount |
| Number Of Wires | 3 |
| Product Type | Snow Plow Lights |
| Shape | Round |
| Standard | CMVSS 108, FMVSS 108, DOT |
| Type | LED Snow Plow & ATL Kit |
| VMRS Code | 066-001-001 |
| Volt | 12V & 24V |
| Weight | 17 lb (7.71 kg) |
| Width | 9-15/32 in (24.05 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 80880 |
| TL 80880 |
