Utility Light, Clear, Rectangular, Le: 1 in
#TRL434WD
Product Overview

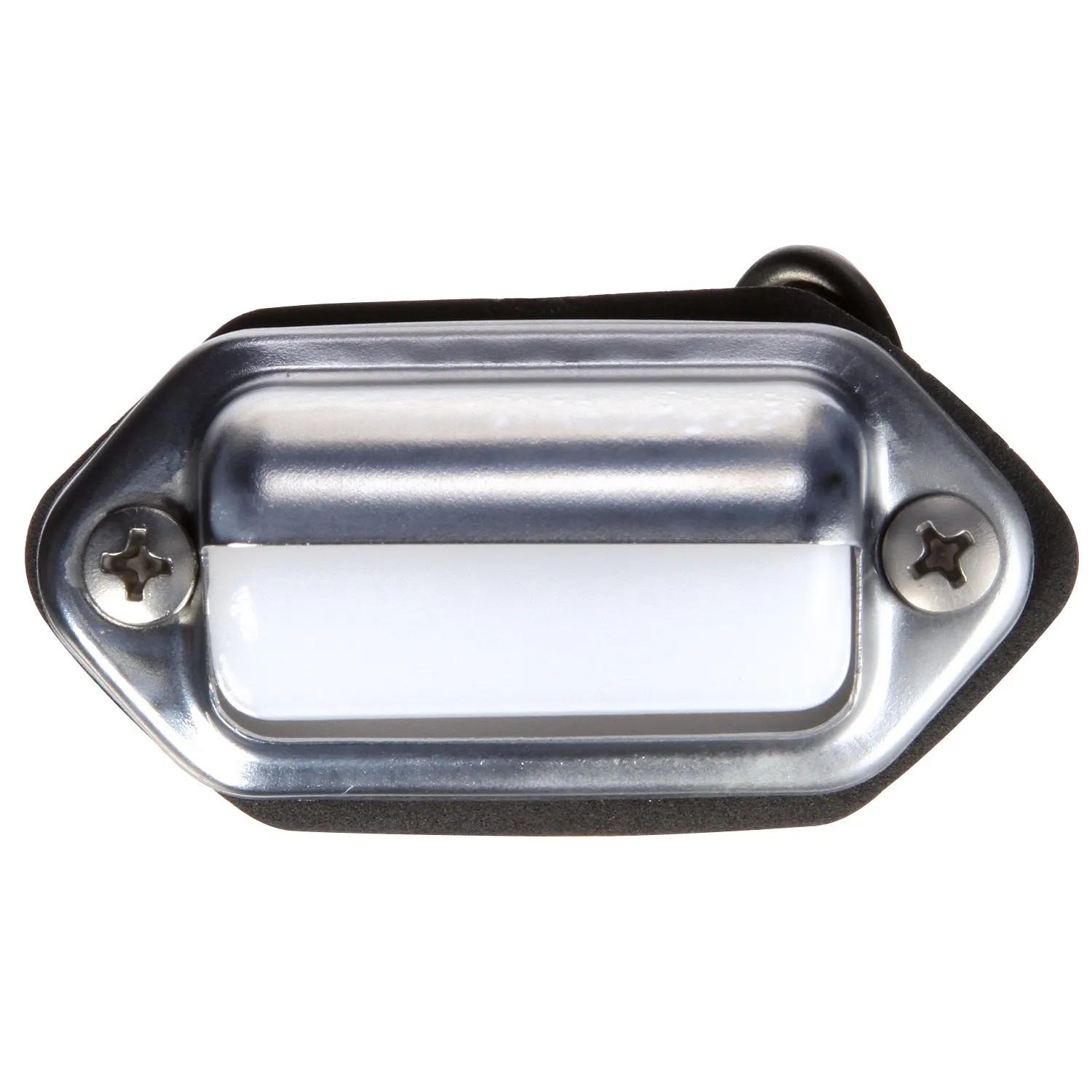

Signal-Stat, Incandescent, 1 Bulb, Rectangular Clear, Utility Light, Chrome 2 Screw Bracket Mount, Hardwired, Stripped End, 12V, Display
Features & Benefits
- Designed to improve safety and functionality in vehicle interiors
- Chrome plated brass housing ensures durability and a sleek appearance
- Focused light output provides enhanced visibility in various conditions
- Hooded guard effectively stops glare for comfortable lighting experience
- Ideal for enhancing interior lighting in vehicles with a polished finish
- Separate ground wire allows for secure and reliable electrical connection
Specifications
| Amps | 0.27 amp |
| Color | White |
| Common Size | 1 in (2.54 cm) |
| Contents | Lamp |
| Depth | 1-1/4 in (3.18 cm) |
| Diameter | 2-5/8 in (6.68 cm) |
| Distance Between Mounting Holes | 2 in (5.08 cm) |
| Height | 1 in (2.54 cm) |
| Housing Color | Chrome |
| Kit (Y/N) | No |
| Length | 1 in (2.54 cm) |
| Lens Height | 1-45/64 in (4.32 cm) |
| Lens Material | Acrylic |
| Lens Width | 7/8 in (2.24 cm) |
| License Plate Light Size | 2-19/32 in (6.58 cm) |
| Material | Brass |
| Mount/Trim Material | Steel |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Utility Light |
| Series | Signal-Stat |
| Shape | Rectangular |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-184 |
| Volt | 12V |
| Weight | 0.13 lb (0.06 kg) |
| Width | 2-5/8 in (6.68 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 434WD |
| M434 |
| V434 |
| SIG434WD |
| TL434WD |
| TLD434WD |
| J340053 |
| LP31CB |
| LP31CPG |
| LPL31CB |
| TRU434WD |
| 8413-434WD |
| LIT434WD |
| LP-31CPG |
| LPL-31CB |
| OPTLPL31CB |
| TL 434WD |
| 434WDS1G |
| 60151-5GR0 |
| 601515 |
| DL2020 |
| GRT61501 |
| LT2020 |
| 61501 |
| G6151 |
| TGG6151 |
| 8124012100B0 |
| 615015 |
| A2253804000 |
| LP31CS |
