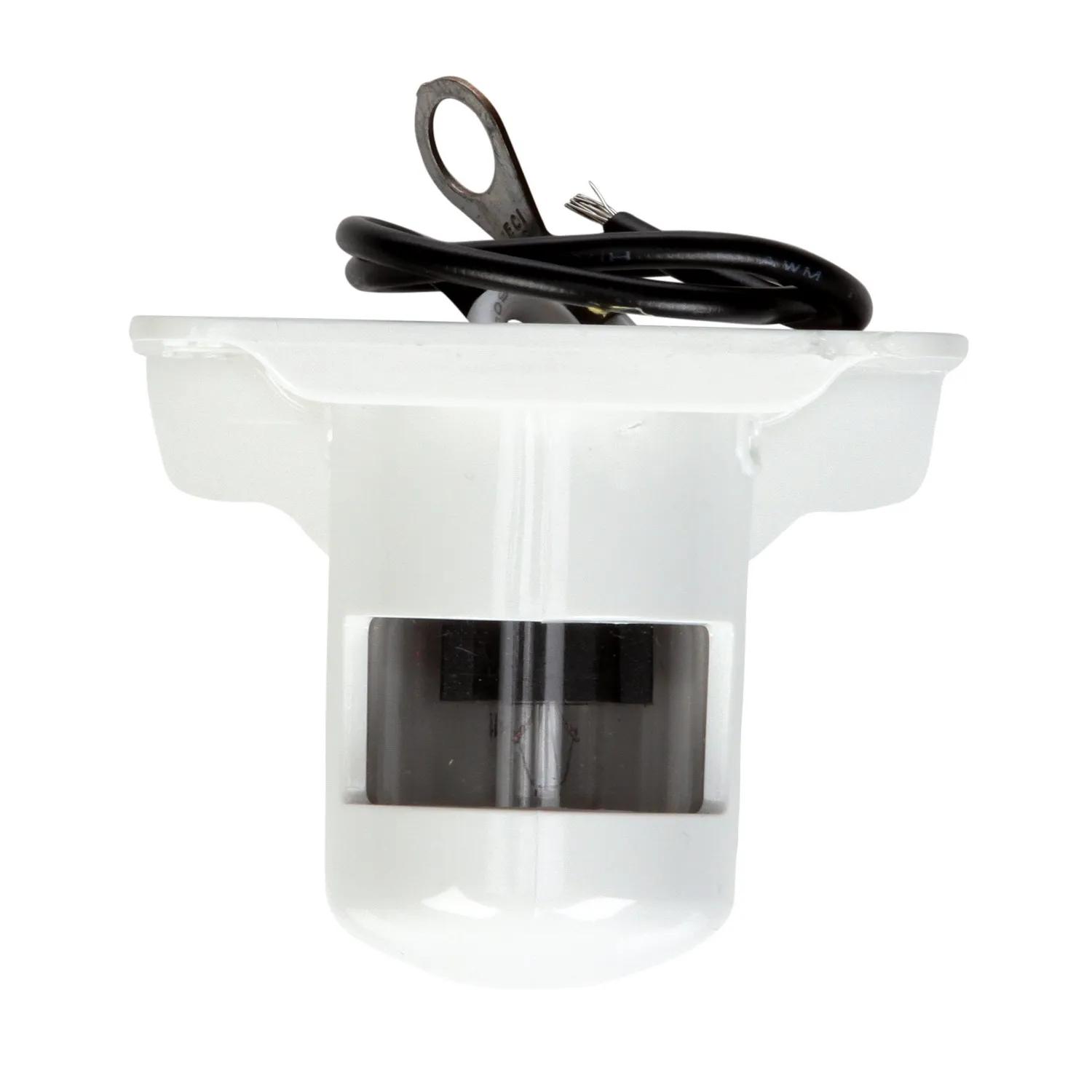

Utility Light, Clear, Round, Le: 2-1/8 in
#TRL433WD
Product Overview
Signal-Stat, Incandescent, 1 Bulb, Round Clear, Utility Light, White 2 Screw Bracket Mount, Hardwired, Stripped End/Ring Terminal, 12V, Display
Features & Benefits
- Twist off lens hood allows for easy bulb replacement
- Grounds through mounting screws for secure connection
- Surface mounts on 2 in centers for versatile installation
- Lights up instrument panel and compartments for visibility
- Universal design fits various applications for convenience
- Enhances safety by illuminating license plate area effectively
Specifications
| Ampères | 0.35 amp |
| Couleur | Blanc |
| Taille commune | 1 in (2.54 cm) |
| Contents | Lampe |
| Depth | 1-3/4 in (4.45 cm) |
| Diameter | 2-3/4 po (6,99 cm) |
| Distance Between Mounting Holes | 2 po (5,08 cm) |
| Height | 2-1/8 in (5.41 cm) |
| Housing Color | Blanc |
| Kit (Y/N) | No |
| Length | 2-1/8 in (5.41 cm) |
| Lens Height | 1-13/32 po (3,58 cm) |
| Lens Material | Acrylic |
| Lens Width | 1-15/64 po (3,12 cm) |
| License Plate Light Size | 2-45/64 po (6,86 cm) x 1-45/64 po (4,32 cm) x 2-3/32 po (5,31 cm) |
| Material | Polycarbonate |
| Mount Type | Montage par support |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Utility Light |
| Series | Signal-Stat |
| Shape | Rond |
| Switch | Non |
| Technology | Incandescent |
| VMRS Code | 034-004-184 |
| Volt | 12V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 2-3/4 in (6.99 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 60151 |
| 433WD |
| 8413433WD |
| SIG433WD |
| TLD433WD |
| 8413-433WD |
| LIT433WD |
| TL 433WD |
| TL433WD |
| 60151-5GR0 |
| 601515 |
| GRT60151 |
