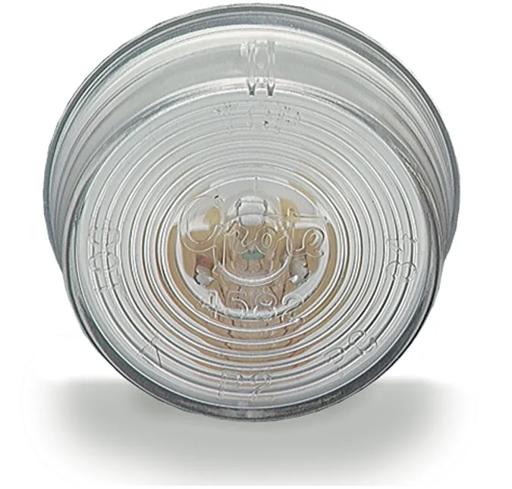

Utility Light, Clear, Round
#TRL30200C
Product Overview
30 Series, Incandescent, 1 Bulb, Round Clear, Utility Light, PL-10, 12V
Specifications
| Amps | 0.33 amp |
| Application | License Lamp |
| Color | Clear |
| Common Size | 2 in (5.08 cm) |
| Connection | PL-10 |
| Contents | Lamp |
| Depth | 11/16 in (1.75 cm) |
| Fits Pigtail Part #(s) | Fits Most All PL10 Pigtails |
| Function | L (when used with 43040 bracket) |
| Height | 2 in (5.08 cm) |
| Includes | Gasket |
| Kit (Y/N) | No |
| Lamp Type | Utility |
| LED | No |
| Length | 2 in (5.08 cm) |
| Lens Height | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2 in (5.08 cm) |
| Material | Polycarbonate |
| Mount Type | Grommet |
| Packaging | Polybag |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Utility Light |
| Regulations | FMVSS 108 |
| Series | 30 Series |
| Shape | Round |
| Size | 2 in (5.08 cm) x 3/4 in (1.91 cm) |
| Standard | FMVSS 108 |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-021 |
| Volt | 12 V |
| Width | 2 in (5.08 cm) |
Interchanges & Equivalent parts:
30200C3, 45821, 735094991, 810000, HT50602428, TL30200C, TL30200C3, TLD30200C3, TRU30200C, TL30200C, 1030W, 30200C3, 45821, TRU30200C, 21003300, 30200C-TL, 458215, 572-0301, 8413-30200C, 85106361, LIT30200C, MTL03020000C, TL 30200C, TL 30200C, TL-30200C, TL30200C, TLD30200C, 146C, LT30C, M146C, PT3000W, TKL30200C, 735094, 6752405X, TL30200C, TRU30200C, 30200C3, HT50602428, TL30200C, TL30200C3, TLD30200C3, 810000, 735094991, 6752405X, 45821, TRU30200C, 30200C3, 45821, 1030W, 21003300, TL 30200C, 572-0301, 85106361, TL30200C, TL-30200C, 458215, TL 30200C, TLD30200C, 30200C-TL, MTL03020000C, LIT30200C, 8413-30200C, PT3000W, 146C, LT30C, 735094, TKL30200C, M146C
