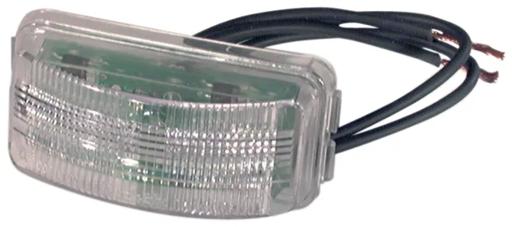

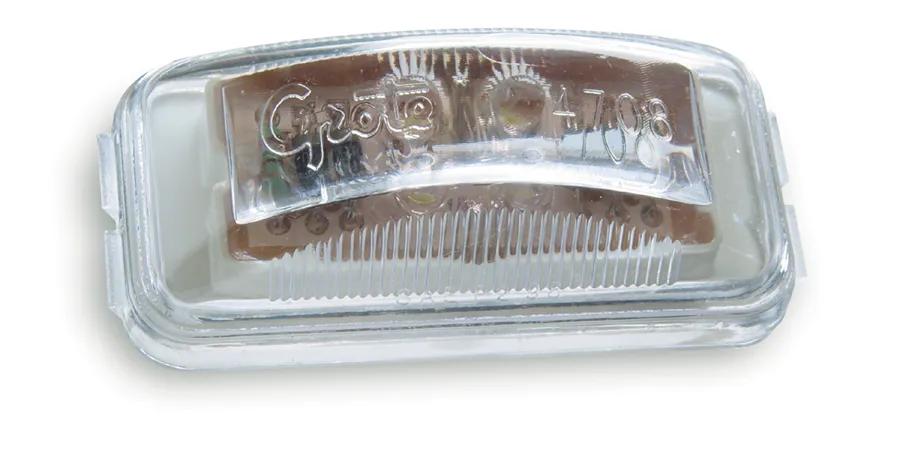

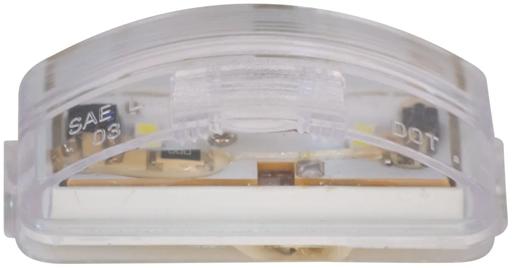

Utility Light, White, Rectangular, LED, Clear Polycarbonate Lens, Female Pin
#GRO60421
Product Overview
Long-life LED light source makes this lamp the perfect choice for difficult-to-reach mounting locations. Uses the same UBS pigtails as incandescent for a quick retrofit. Encapsulant potting ensures total circuit-board protection. Clear hermetic lens-to-housing seal prevents fogging from moisture.Utility Light, Small, Female Pin Connection Type, LED Lamp, Grommet Mounting, White Housing, Clear Lens, Polycarbonate Lens, Polycarbonate Housing, 0.2 A Current Rating, Rectangular, 1 Year Warranty
Features & Benefits
- Uses UBS pigtails like incandescent for quick installation
- Encapsulant potting ensures total circuit-board protection
- Long-life LED light source ideal for hard-to-reach mounting spots
- Clear hermetic lens-to-housing seal prevents fogging from moisture
- Hermetic lens-to-housing seal prevents lamp from fogging due to moisture
- Uses same UBS pigtails as incandescent for a quick retrofit
Specifications
| Amps | 0.2 amp |
| Connection Type | Female Pin |
| Contents | LED Lamp |
| Diameter | 2-31/64 in |
| Diamond Shell (Y/N) | No |
| Distance Between Mounting Holes | 2-13/32 in |
| Height | 1-13/64 in |
| Housing Color | White |
| Kit (Y/N) | No |
| Lamp Type | LED |
| Length | 1-13/64 in |
| Lens Color | Clear |
| Lens Height | 1-13/64 in |
| Lens Material | Polycarbonate |
| Lens Width | 2-31/64 in |
| License Plate Light Size | 2-13/32 in x 1 in x 1-13/64 in |
| Mounting Type | Grommet |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-10, Female |
| Product Type | Utility Light |
| Series | 15 Series |
| Shape | Rectangular |
| Size | 2-19/32 in x 1-3/16 in x 47/64 in |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE, ECE |
| Technology | LED |
| Type | Small |
| VMRS Code | 034-004-068 |
| Voltage Rating | 12V |
| Warranty | 1 Year |
| Weight | 0.13 lb (0.06 kg) |
| Width | 2-31/64 in |
| Wire Gauge | 18 ga |
| Current Rating | 0.2 A |
| Product Category | Utility Light |
Interchanges & Equivalent parts:
| 15205 |
| 60421 |
| 60671 |
| HB9051C |
| 60421GR0 |
| GRO 60421 |
| GRO60421 |
| ZBJ60421 |
| ZBJD60421 |
| 168C |
| 7376-60421 |
| GRT60421 |
| M153C-MV |
| PTL1508W |
| TKL15205 |
| 727687 |
| 729100 |
| 0715PT |
| 60364Y |
