Work Light, Square, V: 12 & 24, Lumens: 1200
#TRL8192
Product Overview

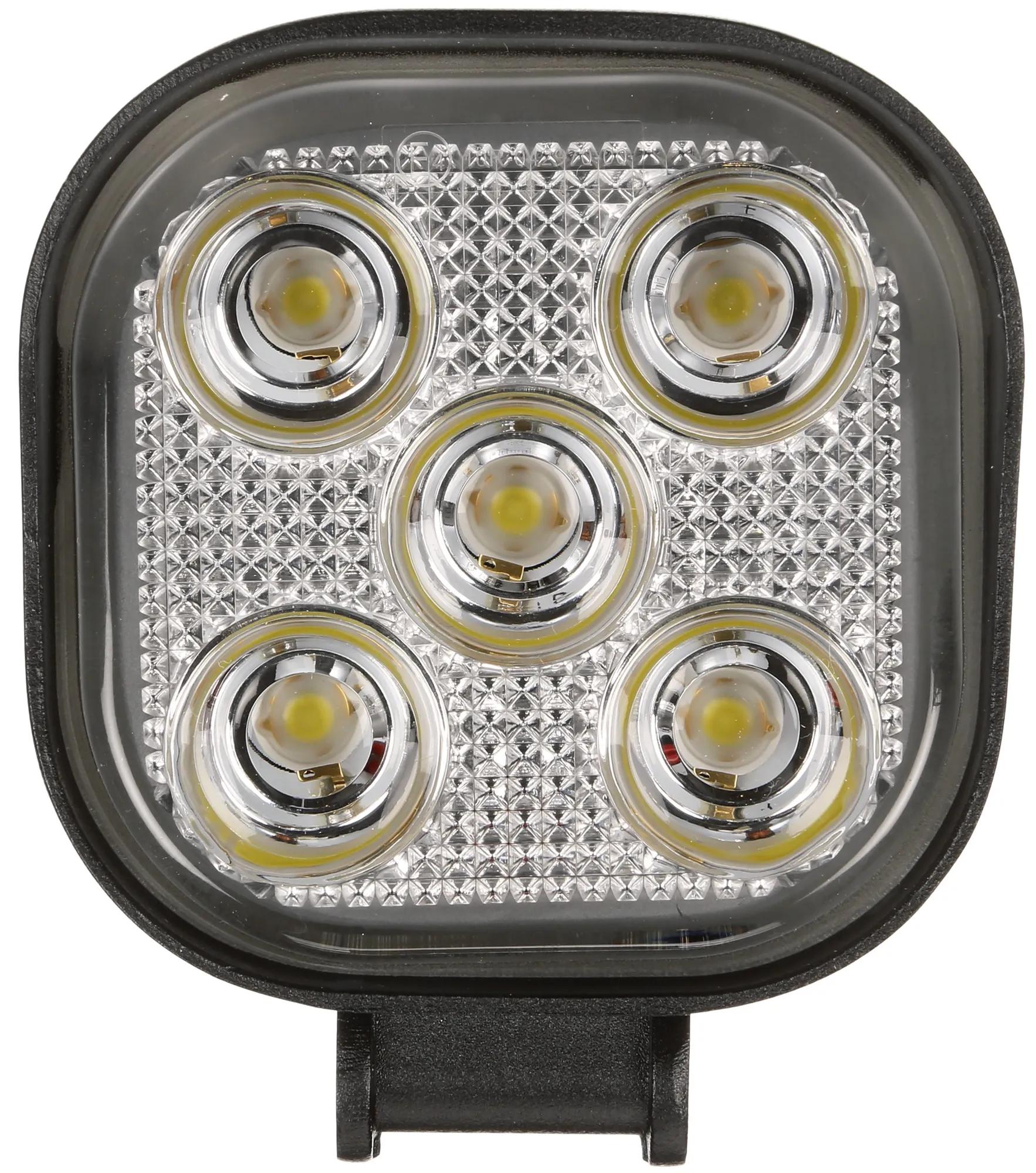

Signal-Stat 3x3 in. Square LED Work Light, Black, 5 Diode, 1200 Lumen, Blunt Cut, 12-24V
Features & Benefits
- Heavy-duty, die-cast aluminum housing
- Lens manufactured with impact-resistant acrylic material
- Rear fins keep heat away from LEDs and lamp circuitry, allowing for increased light output and light longevity
Specifications
| Amps | 0.85 amp |
| Application | Work Lamp |
| Color | White |
| Contents | Lamp & Mounting Kit |
| Depth | 1-25/32 in (4.52 cm) |
| Dimension | 4-5/8 in (11.76 cm) x 3-31/64 in (8.84 cm) x 1-25/32 in (4.52 cm) |
| Height | 4-5/8 in (11.76 cm) |
| Kit (Y/N) | No |
| Lens Material | Acrylic |
| Lumens (lm) | 1200 lm |
| Material | Steel |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Pattern | Work |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Work Light |
| Series | Signal-Stat |
| Shape | Square |
| Style | 3 in x 3 in Work Lamp |
| Technology | LED |
| Type | 3 in x 3 in Work Lamp |
| VMRS Code | 034-006-031 |
| Volt | 12V & 24V |
| Weight | 0.93 lb (0.42 kg) |
| Width | 3-31/64 in (8.84 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 8192 |
| 8192TLT |
| 8413-8192 |
| 913MV |
| TL 8192 |
| TLED-U33 |
| SLMCUB3INFL2 |
| V913MV |
| MWL25SP |
