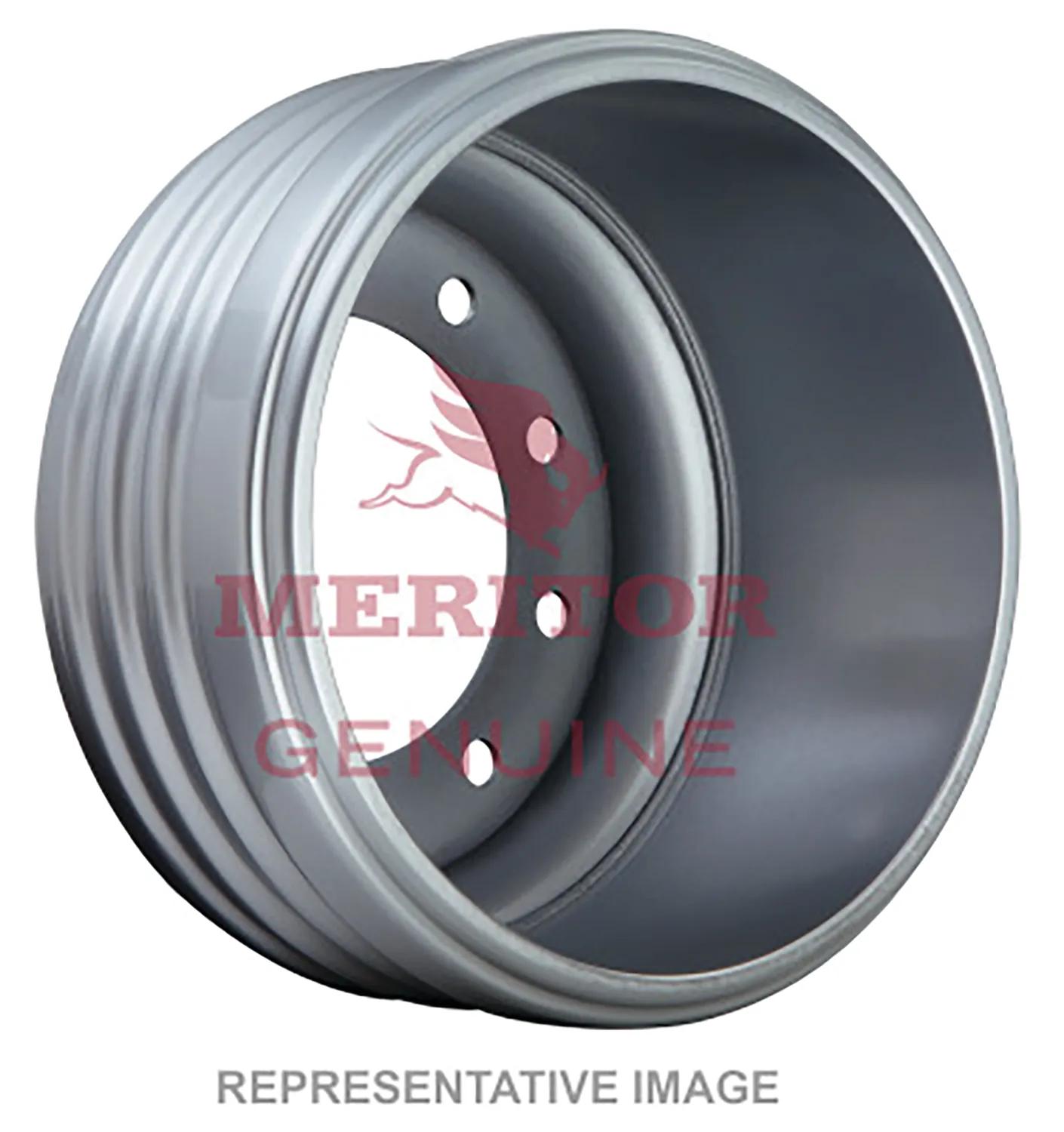

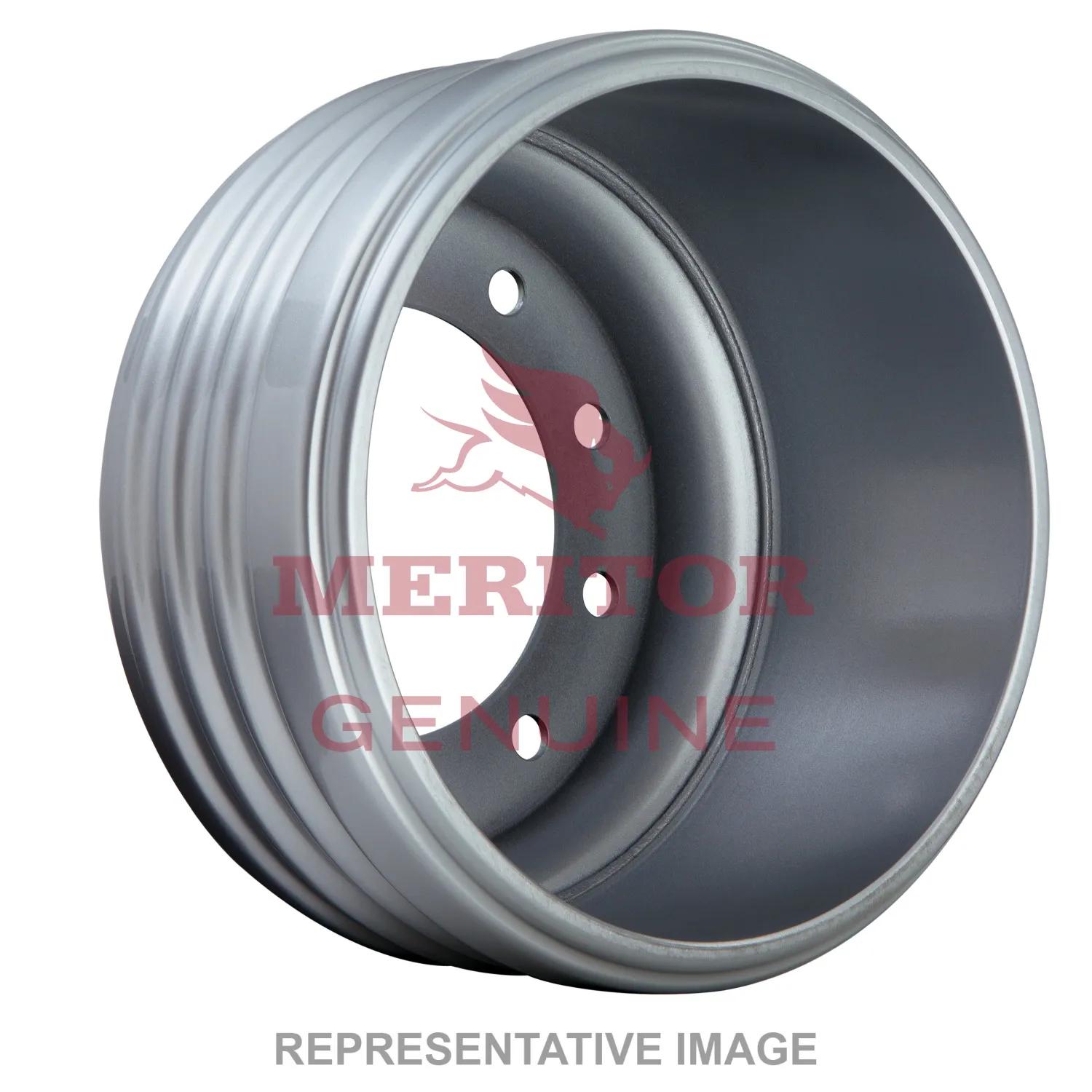

Brake Drum, 15 in x 4 in, 10 holes, (64,56 lb)
#ROC53123512002
Features & Benefits
- Lightweight design generates 15%+ weight savings compared to standard cast drums
- Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner
- Exceeds FMVSS-121 dynamometer specifications
- Designed. cast. and machined for optimal balance and performance
- Backed by a nationwide warranty and the best product support in the business
- Balance within practice per TMC RP608
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Application | Essieu avant de camion, School Bus |
| Épaisseur de la plaque arrière | 1/2 po |
| Diamètre du cercle de perçage | 11-1/4 po |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 4 po |
| Dimension du frein | 15 po x 4 po |
| Diamètre de la surface du frein | 15 po |
| Largeur de la surface de freinage | 4-37/64 po |
| Largeur de cloison | 4 po |
| Montage du tambour | Extérieur |
| Type de tambour | BEA |
| Profondeur d'encastrement du pare-poussière (C) | 51/64 po |
| Diamètre d'évidement du pare-poussière (B) | 16 po |
| Height | 12 po |
| Hole Size | 1-1/4 po |
| Maximum Diameter | 15-1/8 po |
| Overall Depth | 8-35/64 po |
| Overall Diameter | 17-19/64 po |
| Pilot Diameter | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 4-19/64 po |
| Squealer Band Width (K) | 2-11/32 po |
| Type | Coque en acier |
| VMRS Code | 013-017-006 |
| Weight | 61 à 65 lb |
| Weight (lbs) | 29,29 kg (64,56 lb) |
| Wheel Type | Disque |
| Width | 4 po |
Interchanges & Equivalent parts:
| 123420 |
| 2308705 |
| 491-01594 |
| 53-123512 |
| 53-123512-002 |
| 53123512002-RI |
| 60528B |
| 8235-53123512002 |
| 95548B |
| ATI53123512002 |
| DW123512 |
| GUN 3596AX |
| GUN 9000X |
| HWI 90089BK |
| MER53123512002 |
| MOT90089BK |
| TDA 53 123512 002 |
| TDA53123512002 |
| 3721A |
| 65547B |
| 3596 |
