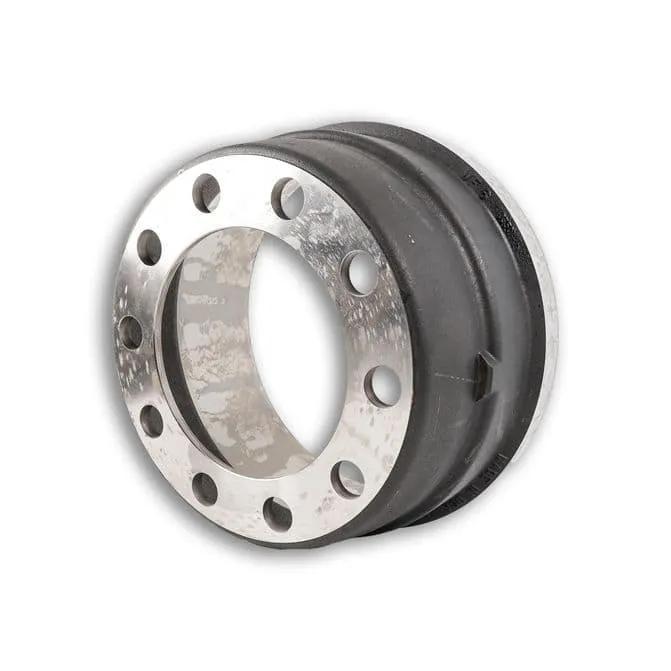

Brake Drum, 15 in x 4 in, 10 Holes, 69 lb, Outboard Mount
#WEB61528B
Product Overview
Warranty:
WEB61528B - Warranty Documents - A
WEB61528B - Warranty Documents - B
WEB61528B - Warranty Documents - C
Brake Drum, Outboard Mount, 0.5 in Back Plate Thickness, 11-1/4 in Bolt Circle Dia, 1.31 in Bolt Hole Dia, 15 x 4 in Brake, 15 in Brake Surface Dia, 4.78 in Brake Surface Width, 10 Holes, 8.78 in Pilot Dia, 8.86 in Height
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Specifications
| Application | Essieux avant de camion. Autobus scolaire |
| Épaisseur de la plaque arrière | 0,5 po |
| Diamètre du cercle de perçage | 11-1/4 po |
| Largeur de segment de frein | 4 po |
| Dimension du frein | 15 po x 4 po |
| Diamètre de la surface du frein | 15 po |
| Largeur de la surface de freinage | 4-25/32 po |
| Largeur de cloison | 4 po |
| Type de tambour | BEA |
| Profondeur d'encastrement du pare-poussière (C) | 51/64 po |
| Diamètre d'évidement du pare-poussière (B) | 16 po |
| Hauteur | 12 po |
| Diamètre maximum | 15-1/8 po |
| Profondeur totale | 8-55/64 po |
| Diamètre total | 17-19/64 po |
| Diamètre du pilote | 8,78 po |
| Décalage du flanc (N) | 4-19/64 po |
| Largeur de bande sonore (K) | 2-11/32 po |
| Type | Fonte |
| Code VMRS | 013-017-006 |
| Poids | 69 lb |
| Poids (lb) | 31,14 kg (68,63 lb) |
| Largeur | 4 po |
| Diamètre du trou de boulon | 1,31 po |
| Type de support | Montage extérieur |
| Nombre de trous | 10 |
| Catégorie de produit | Tambour de frein |
Interchanges & Equivalent parts:
| 123420 |
| 2308705 |
| 3721AX |
| 3631X |
| 3800X |
| 65800 |
| 65800P |
| 65800PB |
| 3123254002 |
| X61225B |
| 3721A |
| 54293018 |
| 8219370 |
| 3631 |
| 61528 |
| 61528F |
| 3575 |
| 3675 |
| 3731 |
| 3569X |
| 7000X |
| 9000X |
| 1201X |
| A1201X |
| 54201108 |
| 235-9102 |
| K12188 |
| 106449 |
| 0201858 |
| OTR1501B |
| 69870B |
| 10081828 |
| 1515401BAMTR |
| 65548B |
| 1613122C1 |
| 2605074C1 |
| 2007012C1 |
| 85123420002 |
| 53123542002 |
| 60545B |
| 10001781 |
| 60528B |
| 107164 |
| 123382 |
| 1515401BA |
| 10009920 |
| 106437 |
| 89870B |
| 1660599C1 |
| FLT4421B |
| 85123254002 |
| 123423 |
| 123386 |
| 85123382002 |
| 85123448002 |
| 821-9370 |
| 17QJ4106 |
| 3726X |
| 1689468C1 |
| 2007012C4 |
