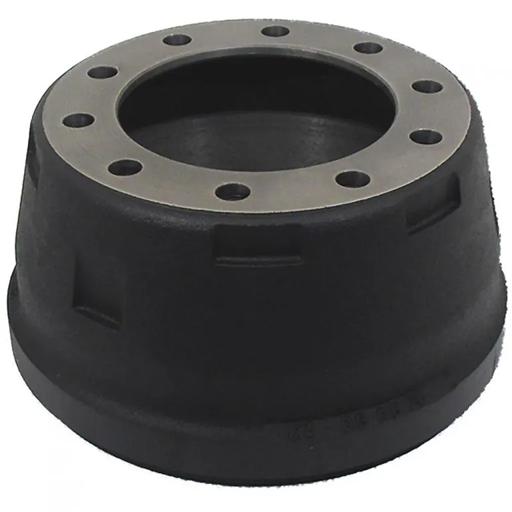

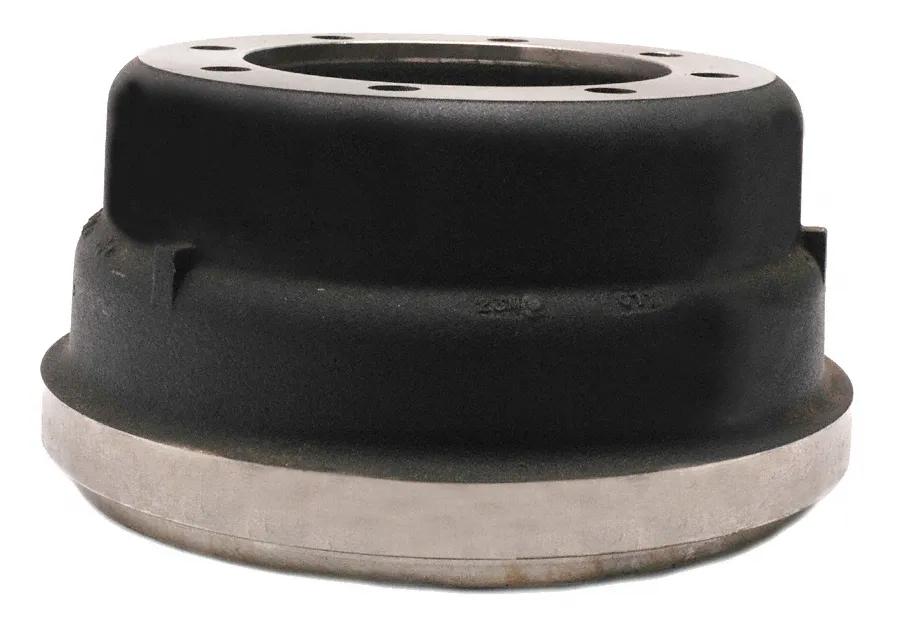

Brake Drum, 15 in x 4 in, 10 holes, (79 lb)
#GUN3721X
Product Overview
This 15 in x 4 in brake drum is designed for heavy-duty applications. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 4 in |
| Brake Size | 15 in x 4 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 4-25/32 in |
| Drum Mounting | Outboard |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 51/64 in |
| Dust Shield Recess Diameter (B) | 16 in |
| Hole Size | 1 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 8-19/32 in |
| Overall Diameter | 17-19/64 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 4-19/64 in |
| Squealer Band Width (K) | 2-11/32 in |
| VMRS Code | 013-017-006 |
| Weight | 76 to 80 lbs |
| Weight (lbs) | 35.84 kg (79 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| 2308401 |
| 53075-018 |
