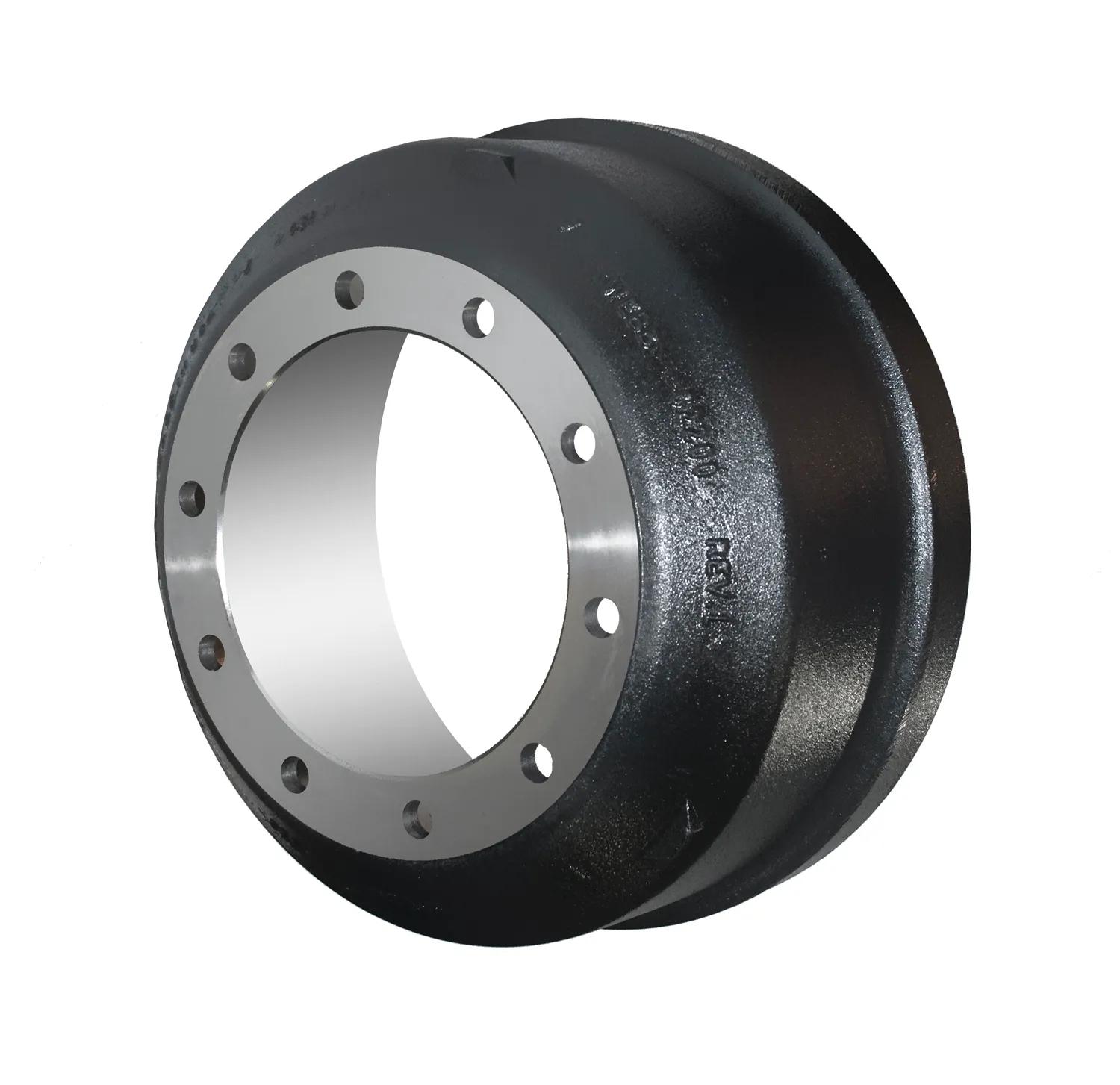

Brake Drum, 16-1/2 in x 7 in, 10 holes, (99 lb)
#DRMX60046
Product Overview
This 16.5 in x 7 in brake drum is designed for trailer axles. It features 10 bolt holes, an inboard design, and a durable cast construction for reliable braking performance.
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
Specifications
| Application | Trailer Axles |
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-5/8 in (19.37 cm) |
| Drum Mounting | Inboard |
| Flange Thickness | 17/32 in (1.35 cm) |
| Hole Size | 13/16 in (2.07 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 9-1/2 in (24.13 cm) |
| Pilot Diameter | 9-7/16 in (23.98 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 96 to 100 lbs |
| Weight (lbs) | 44.91 kg (99 lb) |
Interchanges & Equivalent parts:
| U00X60046S |
| 012582 |
| 100211 |
| 2705 |
| 2760 |
| 62200 |
| 62200F |
| U00X60046 |
| X60046S |
| 13-002-450 |
| 130258 |
| M10767 |
| M10767E |
| X60046 |
| HD5 |
| 5202001 |
| M328N909 |
