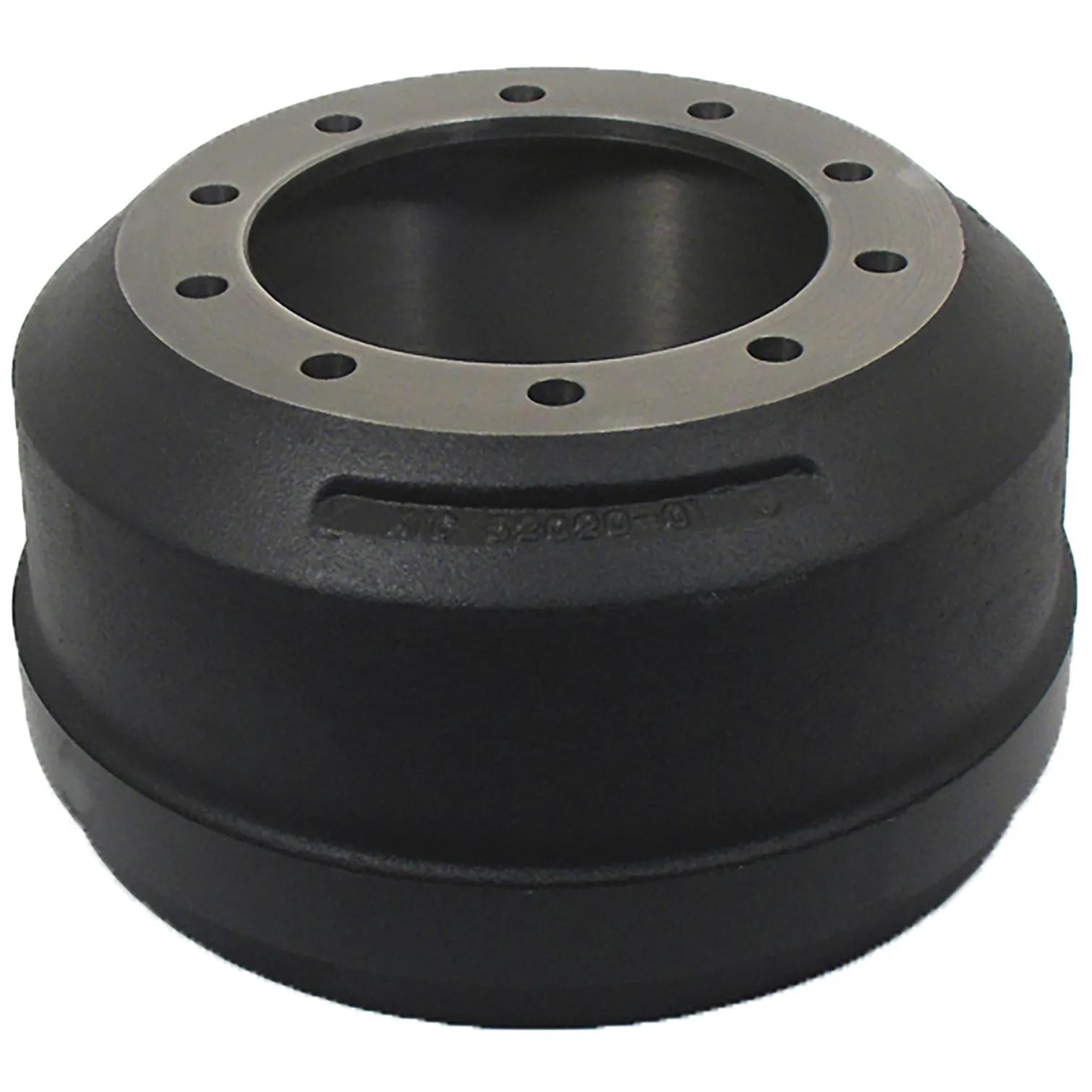

Brake Drum, 16-1/2 in x 7 in, 10 holes
#GUN2705
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Drum Mounting | Inboard |
| Flange Thickness | 17/32 in (1.35 cm) |
| Hole Size | 13/16 in (2.07 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 9-1/2 in (24.13 cm) |
| Pilot Diameter | 9-7/16 in (23.98 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 012582 |
| 2705 |
| 5202001 |
| P130267 |
| PB130267 |
