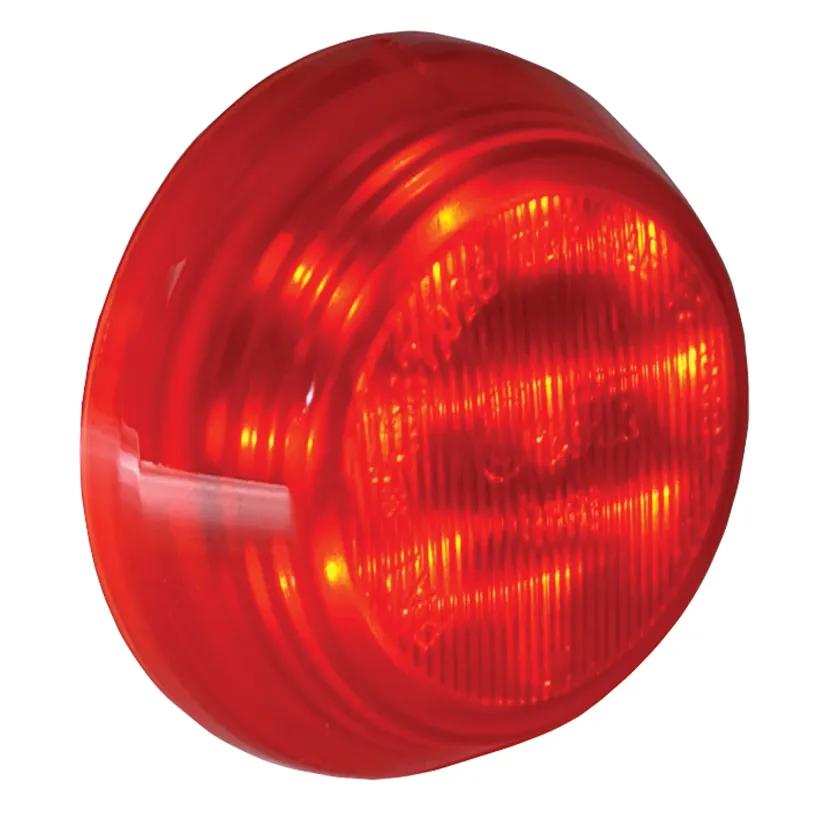

Marker Clearance Light, Red, Round
#GROG1092
Product Overview
Hermetic Lens-To-Housing Seal,concentric, Multiple Diode Layout, Fits All Popular Mounting & Grommets, Uses The Same UBS Double Seal Pigtail As The Incandescent Version For Quick Plug-&-Go Retrofit
Features & Benefits
- Compatible with all popular mountings and grommets
- Hermetic lens-to-housing seal ensures maximum durability
- Twist-on mounting for quick and hassle-free installation
- Ubs double-seal pigtail allows for seamless retrofit with incandescent version
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 0.04 amp |
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.1 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Height | 2-15/64 in (5.66 cm) |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet or Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | LED |
| Type | Marker Clearance Light |
| Volt | 12V |
| Width | 2 in (5.08 cm) |
Interchanges & Equivalent parts:
| 30275R |
| 30275R3 |
| M11256R |
| M11300R |
| M11350RX |
| M16280R |
| G1092 |
| G1092-3 |
| G10923 |
| GROG1092-3 |
| GROG10923 |
| 81234 |
| GRO G1092 |
| GROG1092 |
| PTL1013R |
| ZBJDG1092 |
| ZBJG1092 |
| 7376-G1092 |
| 1812420203 |
| LED10R |
| LED2500-4R |
| LL045902 |
| M11350R-X |
| PTL1004R |
| TKL10250R |
| TKL30275R |
| V172KR |
| 1913KT |
| 50-30200Y3 |
