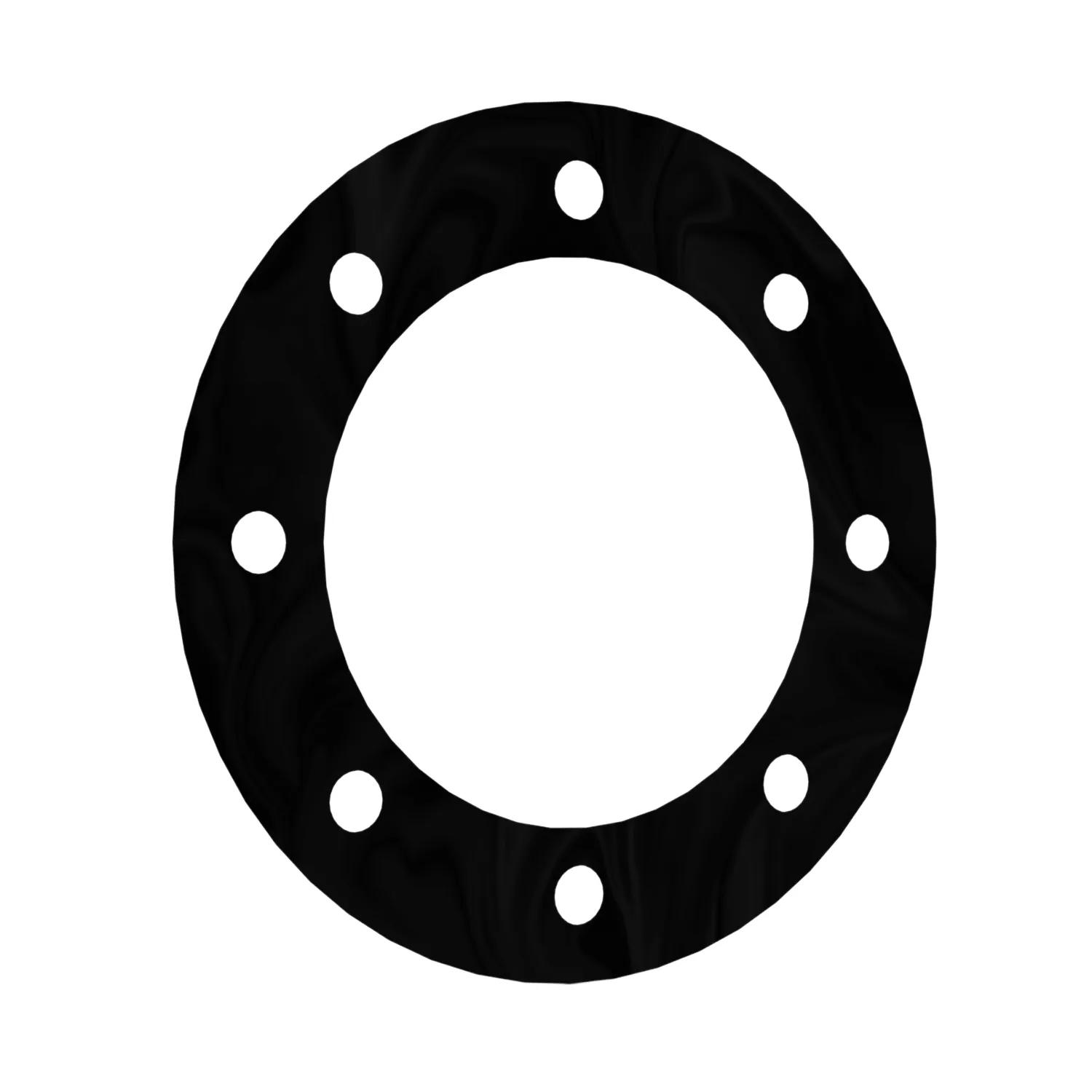

Accuride Wheel Guard, Hub-Piloted, 20MM Stud Diameter, 275 mm Bolt Circle Diameter, 8 Bolt Holes
#ACC790-2
Product Overview
Wheel-Guard® separator plates protect wheels from wear in field service and preserve the surface appearance of aluminum and steel wheels. Recommended for severe applications with excessive wear or corrosion, but not suitable for refuse, transit bus, or high heat applications.Wheel Guard, Hub Piloted, 275 mm Bolt Circle Dia, 1.46 in Hole, 8.72 in ID, Hub Piloted Mounting, 8 Bolt Holes, 13.53 in OD, 0.035 in T, For On Highway, 22 mm L, 22 mm W
Features & Benefits
- Protects wheel from wear and corrosion
- Recommended for severe service conditions
- Not suitable for refuse or transit bus applications
- Hub-piloted mounting for secure fit
Specifications
| Application | Trailer, On Highway |
| Bolt Circle Diameter | 275 mm (10-53/64 in / 27.51 cm) |
| Material | Nylon |
| Mounting | Hub-Piloted Wheels |
| Number of Bolt Holes | 8 |
| Type | Hub-Piloted |
| Width | 22 mm |
| Hex Size | 20MM |
| Hole Size | 1.46 in |
| Inside Diameter | 8.72 in |
| Length | 22 mm |
| Outside Diameter | 13.53 in |
| Thickness | 0.035 in |
| Product Category | Wheel Guard |
Interchanges & Equivalent parts:
| 014000 |
| ACU7902 |
| HDN7902 |
| G4307 |
| PA11677 |
| R18007000 |
| 790-2 |
