Goodyear
GOODYEAR AIR SPRING
#ARB1R13-153
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort

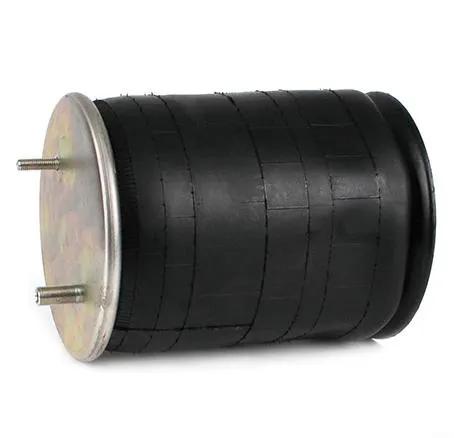

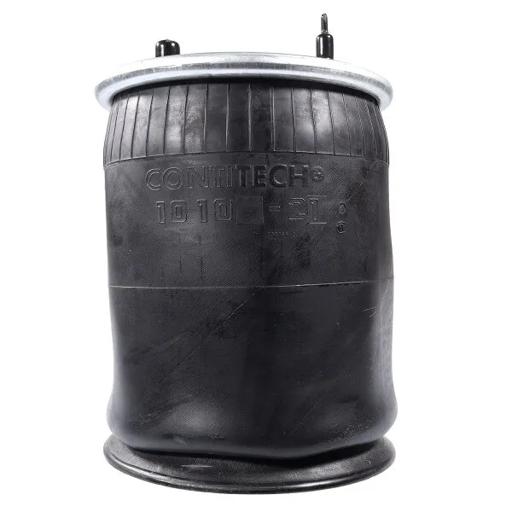

- Firestone W01-358-8749, ContiTech 10 10-21 P 486, Neway 905-57-168, Neway AR-250-12, Neway AR-250-16, Neway AR-250-17
Specifications
| Air Spring Type | Rolling Lobe |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-1/2 in (13.97 cm) |
| Bellows | Automann 1DK25C, Firestone 1T17B-11, Goodwill 566263021, Contitech 10 10-21, Triangle 6386/94 |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 9-51/64 in (24.89 cm) |
| Bottom Plate Hole Stud Qty | 1 |
| Bumper | Yes |
| Compressed Length | 9 in (22.86 cm) |
| Contitech Bellow # | 10 10-21 |
| Firestone Bellows Number | 1T17B-11 |
| Goodyear Bellow # | 566263021 |
| Height | 14 in (35.56 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 23-1/2 in (59.69 cm) |
| Plate Type | Composite |
| Quantity | 1 |
| Top Plate Diameter | 10-19/64 in (26.16 cm) |
| Top Plate Hole Count | 2 |
| Triangle Bellows Number | 6386/94 |
| Type | Rolling Lobe Air Springs |
| Weight | 20 lb (9.07 kg) |
| Width | 12 in (30.48 cm) |
