Tambour de frein, 16-1/2 po x 8 po, 10 holes, (125 lb)

#GUN3782X

Sommaire du produit

Ce tambour de frein 16.5 x 8 pouces est conçu pour les essieux de camions et remorques avec une capacité d’essieu de 23 000 lb. Il dispose de 10 trous de boulons, d'un montage externe et d'une construction en fonte durable pour des performances de freinage fiables.

Caractéristiques et avantages

All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.

Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.

Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.

Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.

Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.

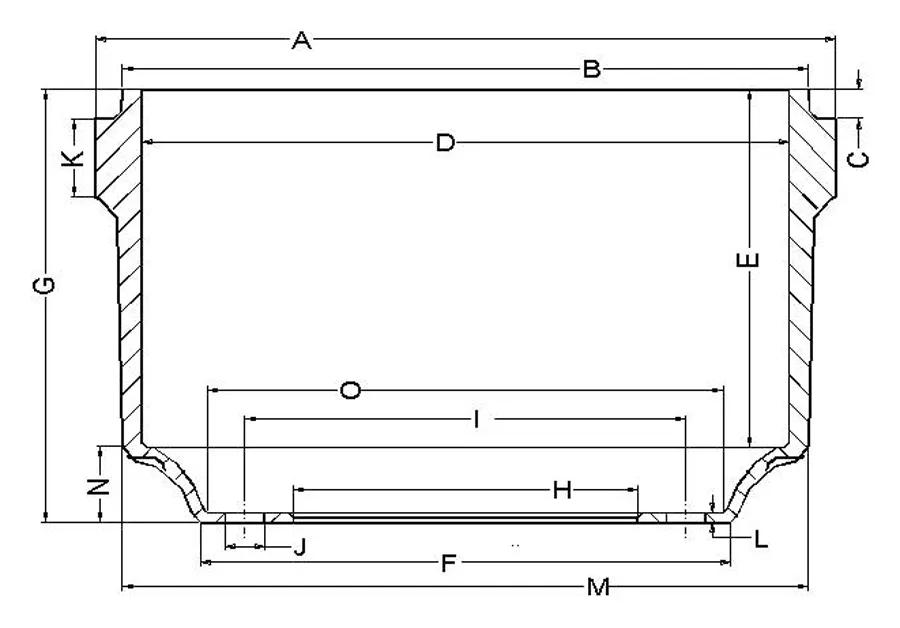

Spécifications

Axle Capacity (lb)	50707 kg (23000 lbs)
Back Plate Thickness	9/16 in
Bolt Circle Diameter	11-1/4 in
Bolt Hole (Number)	10
Brake Shoe Width	8 in
Brake Size	16-1/2 in x 8 in
Brake Surface Diameter	16-1/2 in
Brake Surface Width	8-19/32 in
Bridge Width	8 in
Drum Mounting	Outboard
Drum Mount Type	Outboard
Drum Type	BDA
Dust Shield Recess Depth (C)	11/16 in
Diamètre d'évidement du pare-poussière (B)	17-1/2 in
Hauteur	12 in
Taille de l'orifice	1 in
Diamètre maximum	16-5/8 in
Profondeur totale	11-1/16 in
Diamètre total	18-29/32 in
Emballage	Individual / Bulk
Diamètre du pilote	8-25/32 in (22.31 cm)
Décalage du flanc (N)	2-1/2 in
Largeur de bande sonore (K)	2-13/64 in
Code VMRS	013-017-006
Poids	121 to 130 lbs
Poids (lb)	56.7 kg (125 lb)
Type de roue	Disc
Largeur	8 in
