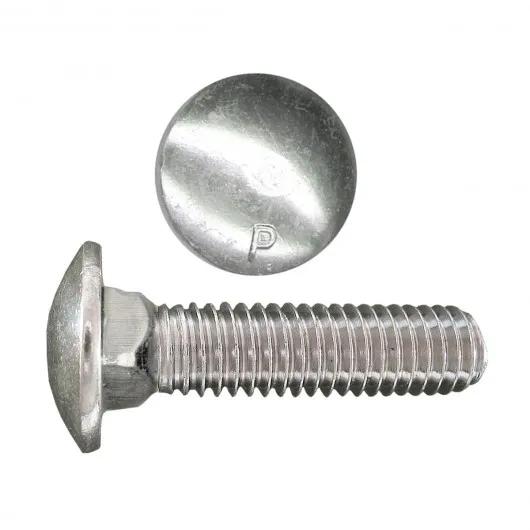

1/4X2 1/2 CARRIAGE BOLT
#PAP129-318
Product Overview
Carriage Bolts are fully threaded and also known as shaker screen Bolts. They have a low profile Head with a square neck that resists turning when nut is tightened or removed. Used for wood-to-wood and wood-to-Metal applications. A square neck keeps them from turning when tightening a nut. A smooth, round Head provides a finished look. Zinc plated Fasteners have good corrosion resistant qualities and are a good choice for indoor and industrial applications. Grade 2: Tensile Strength: up to 5/8" - 64,000 p.s.i. (min) 3/4" diameter up to 55,000 p.s.i. (min). No radial bar marking on Head. Made from low carbon steel.
Specifications
| Finition | Zingué |
| Filetage complet ou partiel | Full Thread |
| Head Type | Ronde |
| Imperial Or Metric | Impérial |
| Length | 2-1/2 po (6,35 cm) |
| Material | Acier à faible teneur en carbone |
| Pieces Per Package | 100 |
| Product Class | Boulon de carrosserie |
| Product group | Boulons |
| Length Range | 2 à 2,99 po |
| Thread Size | 1/4 po (0,64 cm) |
| Thread Type | UNC (Unified National Coarse) |
| Type | Boulons de carrosserie UNC |
Interchanges & Equivalent parts:
| 129-318 |
