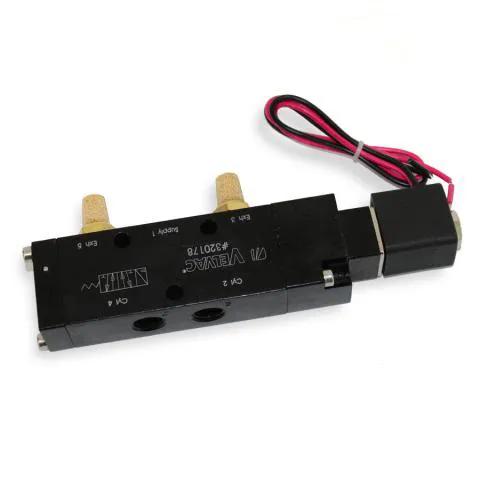

5 Way-2 Position Solenoid Valve with Anodized Aluminum Body and Nitrile Seals
#VEL320178
Product Overview
Solenoid Valve, Aluminum, Anodized, 100 psi Pressure, Temperature Rating: -40 to 180 °F
Features & Benefits
- Nitrile seals for long cycle life. High Impact Knobs
- Balanced spool design
- Anodized aluminum black bodies
- Operates any single acting or pressure double acting air cylinder.
- (5) 1/4" - 18 FPT port.
- (3) 9/32" diameter valve body mounting holes.
- Actuated with a standard On/Off switch.
- Normal operating pressure 100 psi
- Exhaust cone filters included.
- Operating temperature range from -40 °F to +180 °F
- Stainless steel hardware
- Air-piloted assist
Specifications
| Type | 5 voies-2 positions |
| Finition | Anodisé |
| Hauteur | 1 |
| Taille de l'entrée | 1/4 po - 18 FPT |
| Longueur | 6 |
| Matériel | Aluminium |
| Mounting | 3 trous de montage de corps de vanne de 9/32 po de diamètre |
| Pressure Rating | 100 lb/po² |
| Temperature Rating | -40 à 180 °F |
| Width | 10 |
| Product Category | Vanne solénoïde |
| Weight | 0.85 |
Interchanges & Equivalent parts:
| 29SS4 |
| 320131 |
| AC195 |
