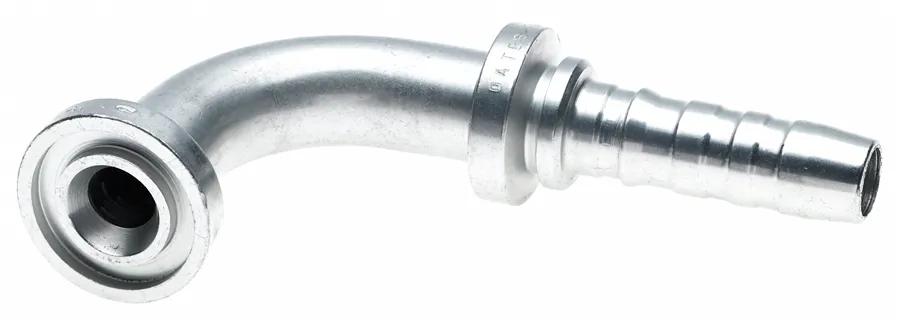

Code 61 Komatsu Style O-Ring Flange, 90*, 10GS-10FLK90-055
#GATG20315-1010
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- By Pulling the Ferrule Away From the Hose End, it's Easier to See When the Stem is Fully & Securely Inserted Into the Hose.
- The Two-Piece Design Potentially Reduces Inventory by 30 Percent Since Only One Stem is Required for All Spiral Wire Hose Types.
- The Innovative Two-Piece, No-Skive Design Allows for Fast, Tailor Made Assemblies.
- Unique Bite-the-Wire Crimp Design Allows for Improved Coupling Retention & Blow-Off Prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Coupling Description | Code 61 Komatsu Style O-Ring Flange - 90 Bent Tube |
| Cut Off (in) – C | 2-11/32 in (5.94 cm) |
| Diameter | 1-11/32 in (3.4 cm) |
| Drop (in.) | 2-11/64 in (5.51 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Industrial Description | 10GS-10FLK90-055 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 4-21/64 in (11 cm) |
| Pressure | 5000 psi (344.73 bar) |
| Type | Code 61 Komatsu Style O-Ring Flange - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 1B10KSB10 |
| G20315-1010 |
| 734773355 |
