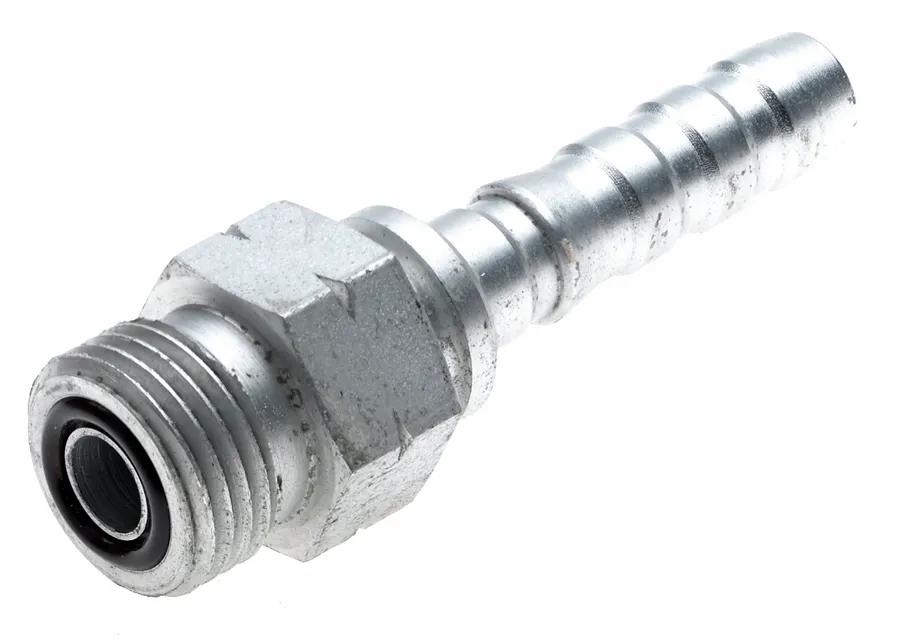

GlobalSpiral Male Flat-Face O-Ring, 12GS-16MFFOR
#GATG20225-1216
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- By Pulling the Ferrule Away From the Hose End, it's Easier to See When the Stem is Fully & Securely Inserted Into the Hose.
- The Two-Piece Design Potentially Reduces Inventory by 30 Percent Since Only One Stem is Required for All Spiral Wire Hose Types.
- The Innovative Two-Piece, No-Skive Design Allows for Fast, Tailor Made Assemblies.
- Unique Bite-the-Wire Crimp Design Allows for Improved Coupling Retention & Blow-Off Prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Description d'accouplement | GlobalSpiral Male Flat-Face O-Ring |
| Coupure (po) – C | 1-47/64 po (4,39 cm) |
| Recommandations pour le tuyau | Tuyau hydraulique à quatre et six fils en spirale All Gates MegaSys jusqu'à 8 000 psi |
| Description industrielle | 12GS-16MFFOR |
| Diamètre intérieur | 3/4 po (1,91 cm) |
| Longueur | 3-47/64 po (9,47 cm) |
| Diamètre intérieur du manchon | 1-39/64 po (4,09 cm) |
| Stem Hex (in.) | 1-39/64 po (4,09 cm) |
| Thread | 1-7/16 po-12 |
| Type | Joint torique mâle à face plate GlobalSpiral |
Interchanges & Equivalent parts:
| 28730-1216 |
| 287301216 |
| GYH28730-1216 |
| G20225-1216 |
| 734723845 |
