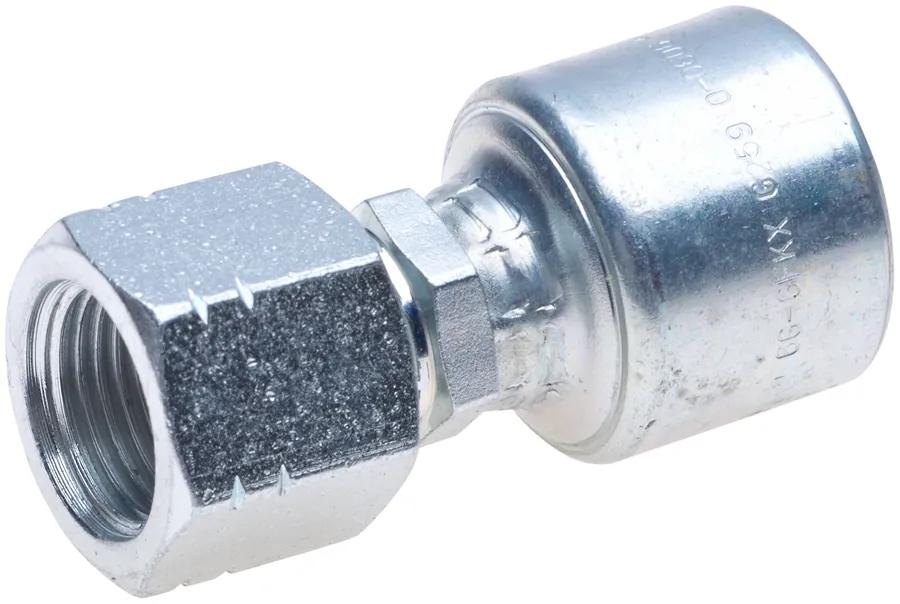

MegaCrimp Female Komatsu Style Japanese Swivel, 20G-20FKX
#GATG25910-2020
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- These Female Swivels Have Been Marked w/ 2 Small Notches on the Hex to Identify Them as the Komatsu Style.
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Coupure (po) – C | 2-7/16 po (6,2 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 20G-20FKX |
| Diamètre intérieur | 1-1/4 po (3,18 cm) |
| Longueur | 4-13/16 po (12,22 cm) |
| Écrou hexagonal (po) – H2 | 2 po (5,08 cm) |
| Type de joint d'étanchéité | Mated Angle |
| Siège | Standard |
| Angle d'assise (degré) | 30 deg |
| Sleeve Inside Diameter | 1-3/4 po (4,45 cm) |
| Stem Hex (in.) | 1-3/4 po (4,45 cm) |
| Swivel | Oui |
| Thread | M36 x 1,5 |
| Thread Type | Métrique |
| Type | Raccord pivotant métrique japonais de style Komatsu femelle MegaCrimp |
Interchanges & Equivalent parts:
| G25910-2020 |
| 710003775 |
