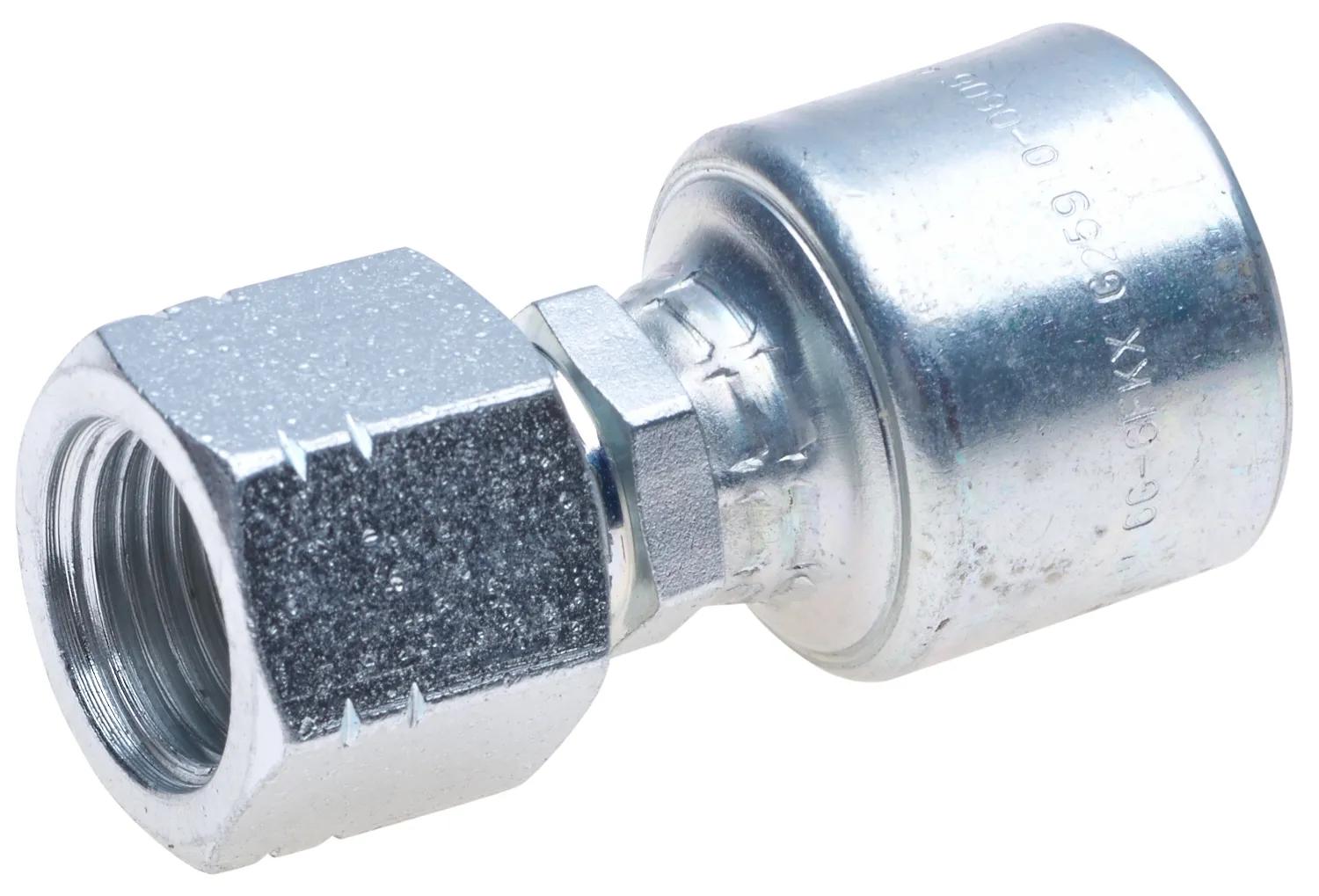

MegaCrimp Female Komatsu Style Japanese Swivel, 4G-4FKX
#GATG25910-0404
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- These Female Swivels Have Been Marked w/ 2 Small Notches on the Hex to Identify Them as the Komatsu Style.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Coupure (po) – C | 1-21/64 po |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 4G-4FKX |
| Diamètre intérieur | 1/4 po |
| Longueur | 2-11/32 po |
| Note | These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style. |
| Écrou hexagonal (po) – H2 | 3/4 po |
| N° de pièce d'origine | G25910-0404 |
| Numéro de produit | 710003625 |
| Type de joint d'étanchéité | Mated Angle |
| Siège | Standard |
| Angle d'assise (degré) | 30 deg |
| Diamètre intérieur du manchon | 35/64 po |
| Tige hexagonale (po) | 35/64 po |
| Pivot | Oui |
| Filetage | M14 x 1,5 |
| Type de filetage | Métrique |
| Type | Raccord pivotant métrique japonais de style Komatsu femelle MegaCrimp |
| Poids | 0,17 lbs |
Interchanges & Equivalent parts:
| 1A4KF4 |
| G25910-0404 |
| 710003625 |
