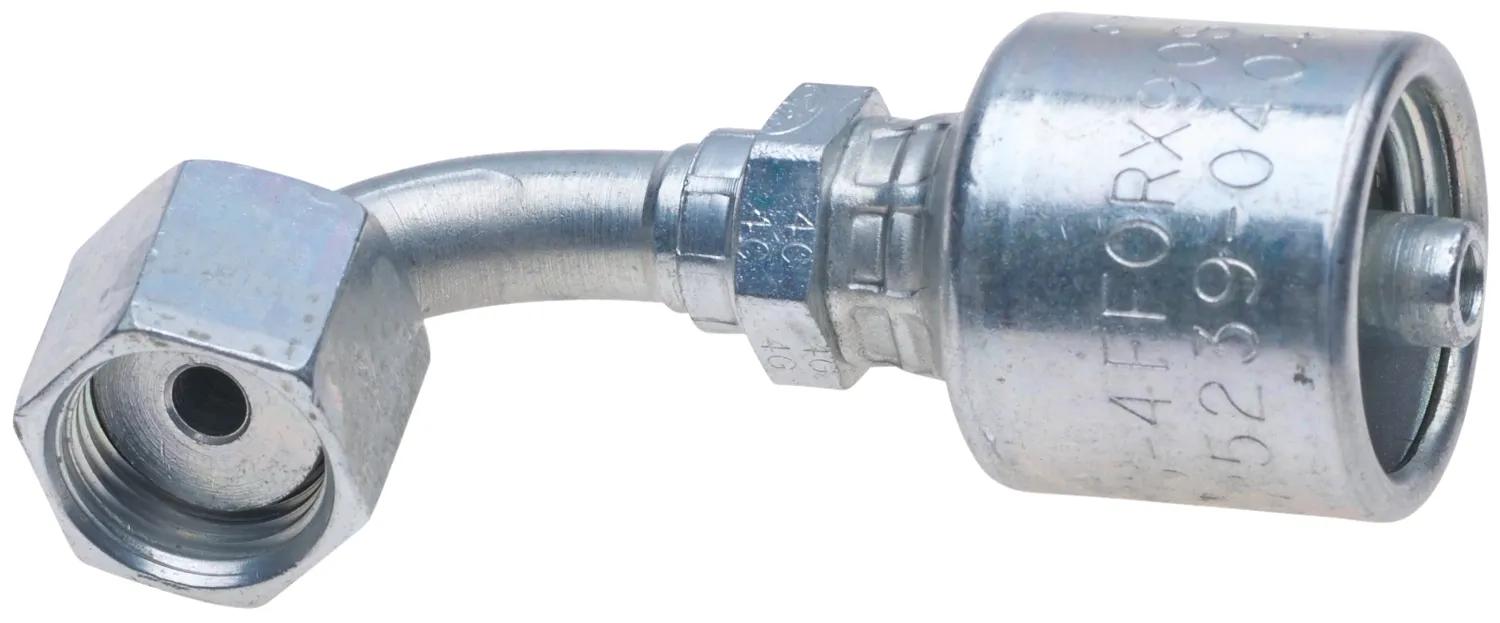

Gates MegaCrimp Coupling, 90 deg, Steel, 0.252 in Connection Size 1, 11/16-16 Connection Size 2, 2.5 in Length

#GATG25239-0406

Product Overview

Gates MegaCrimp Couplings are designed for use with Gates Wire Braid Hydraulic Hoses to create a robust, leak-free assembly. The performance comes from the patented 'C' insert attached to the ferrule, which ensures an even distribution of crimping forces for a concentric seal. This design allows a single coupling to be used with various one- and two-wire braid hoses of different constructions and wall thicknesses, simplifying inventory. MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.

Features & Benefits

To prevent leaks from over-torquing, Gates® Full-Torque Nut™ technology makes couplings stronger and more durable than staked nut fittings, transferring input-torque to clamp-load more consistently. This technology is available on Gates® MegaCrimp™ and GlobalSpiral™ couplings.

Features a robust 'bite-the-wire' crimp design with a low profile, full-stem insertion, and full-length crimp for superior coupling and hose retention, creating a high-performance, risk-free hydraulic hose assembly.

The unique "C" insert sets a new standard for hydraulic couplings by ensuring "weep-free" concentric crimping, which keeps equipment and the surrounding environment clean.

Simplifies inventory requirements and reduces costs, as one MegaCrimp coupling size can accommodate various 1 and 2-wire braid hydraulic hoses of different constructions and wall thicknesses, and is qualified on all Gates® wire-braid hoses.

Specifications

Angle	90 deg
Description d'accouplement	MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube
Coupure (po) – C	1-15/32 in
Type de raccords	Female
Recommandations pour le tuyau	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Description industrielle	4G-6FFORX90S
Diamètre intérieur	0.25 in
Longueur	2.5 in
Matériel	Acier
Écrou hexagonal (po) – H2	55/64 in
N° de pièce d'origine	G25239-0406
Joint torique	Flat Face O-Ring
Numéro de produit	710424095
Type de joint d'étanchéité	O-Ring
Pivot	Yes
Filetage	11/16 in-16
Type	90 deg
CUP	72053323603
Dimension de la connexion 1	0.252 in
Dimension de la connexion 2	11/16-16
Type de connexion 1	Female Flat-Face O-Ring Swivel
Type de connexion 2	Tube
Numéro de référence de fabricant	G25239-0406
Catégorie de produit	MegaCrimp Coupling
Quantity	1
Weight	0.2 lbs

Interchanges & Equivalent parts:

G25239-0406

710424095
