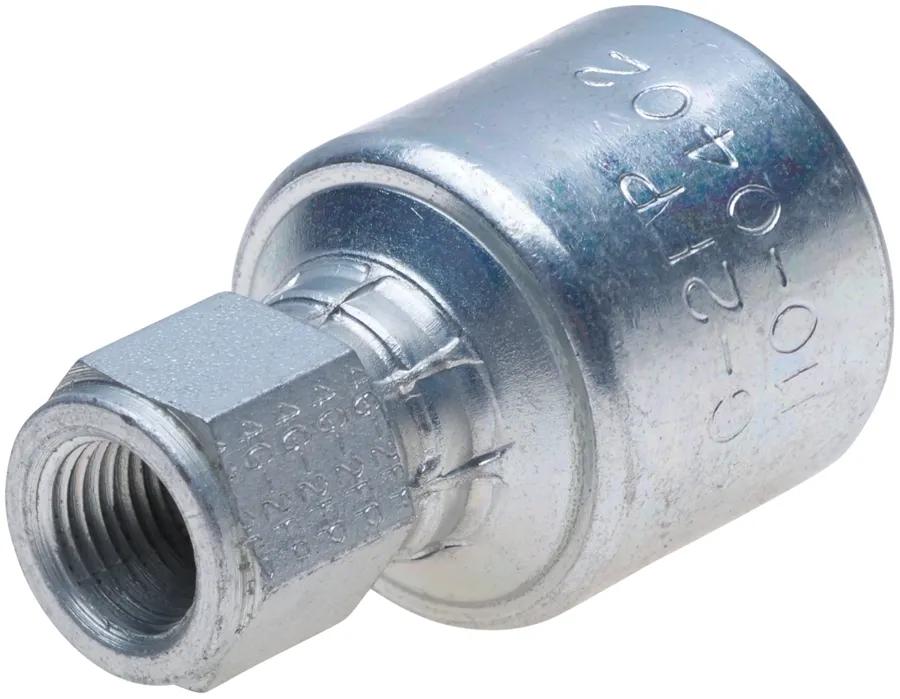

MegaCrimp Female Pipe (NPTF), 4G-6FP
#GATG25110-0406
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Female Pipe (NPTF - w/o 30 Cone Seat) |
| Cut Off (in) – C | 31/32 in (2.46 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 4G-6FP |
| Inside Diameter | 1/4 in (0.64 cm) |
| Length | 1-63/64 in (5.03 cm) |
| Seal Type | Thread Interference |
| Stem Hex (in.) | 13/16 in (2.06 cm) |
| Swivel | No |
| Type | MegaCrimp Female Pipe (NPTF - w/o 30 deg Cone Seat) |
Interchanges & Equivalent parts:
| G25110-0406 |
| 710010505 |
