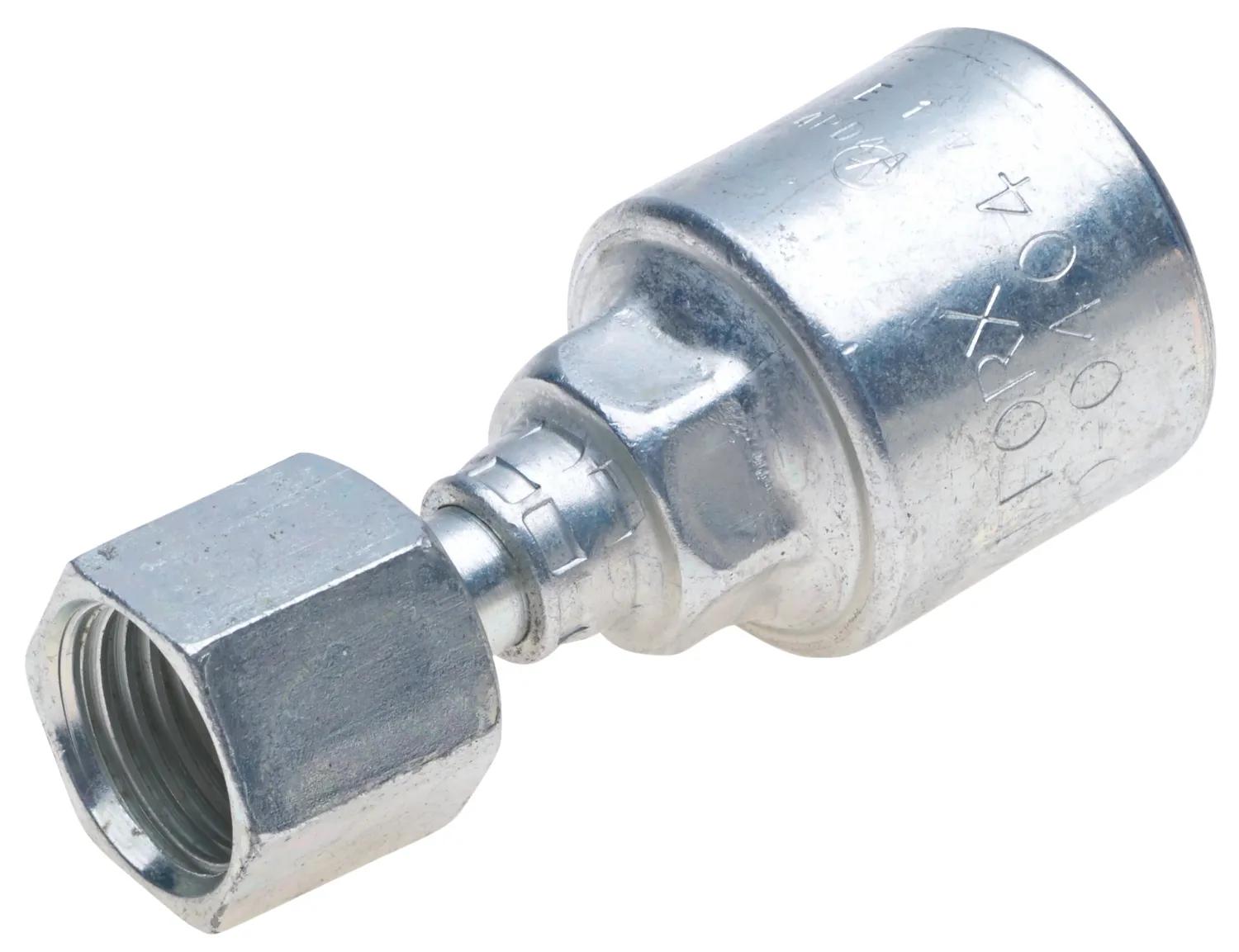

MegaCrimp Female Flat-Face O-Ring Swivel, 6G-4FFORX
#GATG25230-0604
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- SAE J1453 O-Ring Face Seal.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Flat-Face O-Ring Swivel |
| Coupure (po) – C | 1-63/64 po (5,03 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-4FFORX |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 3-5/64 po (7,82 cm) |
| Note | Joint Torique SAE J1453. |
| Écrou hexagonal (po) – H2 | 43/64 po (1,7 cm) |
| N° de pièce d'origine | G25230-0604 |
| Joint torique | Joint Torique à face plate |
| Numéro de produit | 710419085 |
| Type de joint d'étanchéité | Joint Torique |
| Diamètre intérieur du manchon | 43/64 po (1,7 cm) |
| Tige hexagonale (po) | 43/64 po (1,7 cm) |
| Pivot | Oui |
| Filetage | 9/16 po-18 |
| Type | Raccord pivotant à joint torique à face plate femelle MegaCrimp |
Interchanges & Equivalent parts:
| 147000604 |
| GYH14700-0604 |
| G25230-0604 |
| 710419085 |
