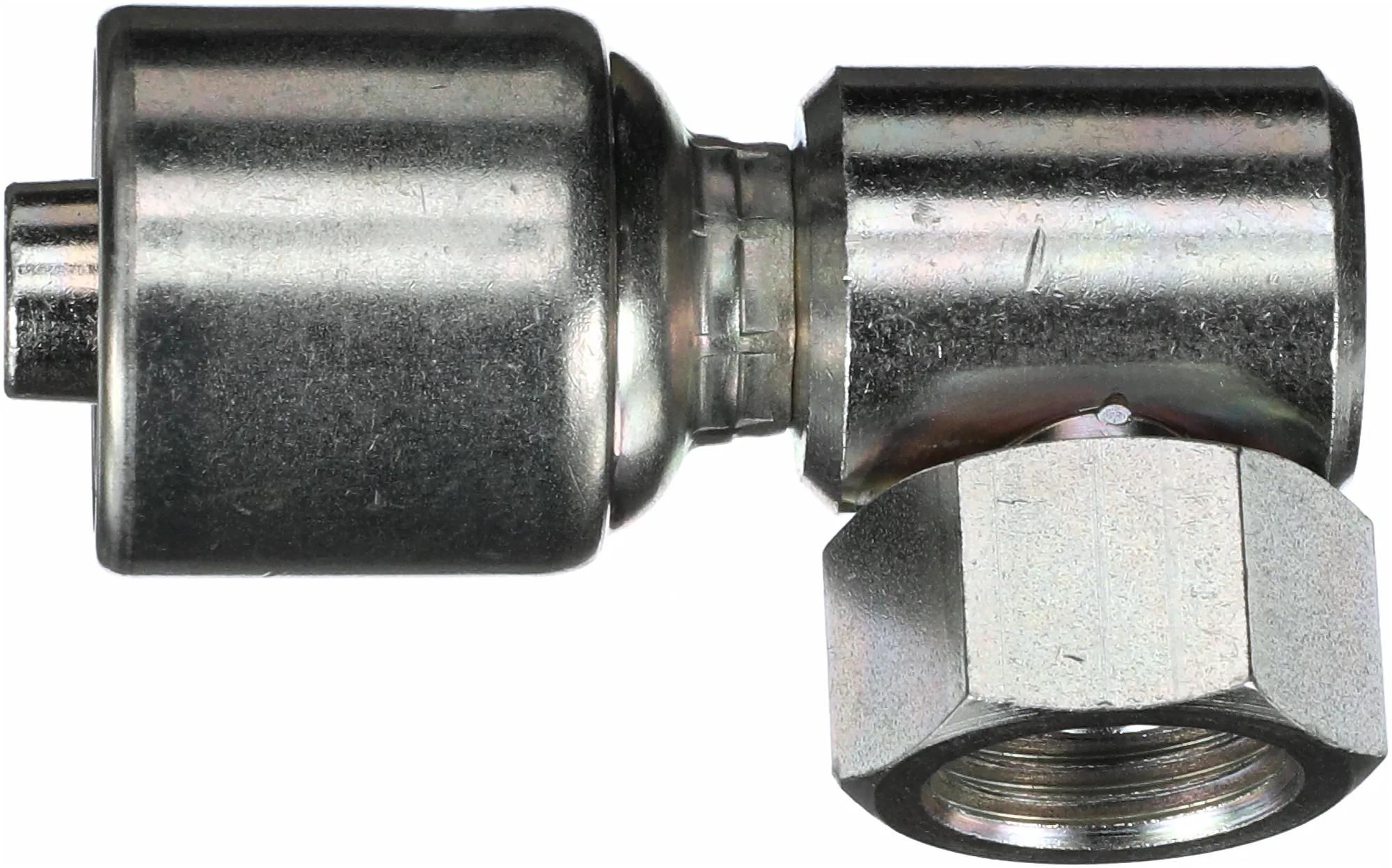

MegaCrimp Pipe O-Ring Swivel, 90* Block, 6G-6FBSPORX90BL
#GATG25845-0606
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Description d'accouplement | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Block |
| Coupure (po) – C | 25/32 po (1,98 cm) |
| Chute (po.) | 53/64 po (2,11 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-6FBSPORX90BL |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 1-45/64 po (4,32 cm) |
| Écrou hexagonal (po) – H2 | 55/64 po (2,18 cm) |
| O-Ring | Sur femelle avec siège à nez inversé |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 30 deg |
| Swivel | Oui |
| Termination | British |
| Type | Raccord tournant à joint torique pour tube parallèle femelle MegaCrimp, norme britannique - Bloc à 90 degrés |
Interchanges & Equivalent parts:
| G25845-0606 |
| 710028885 |
