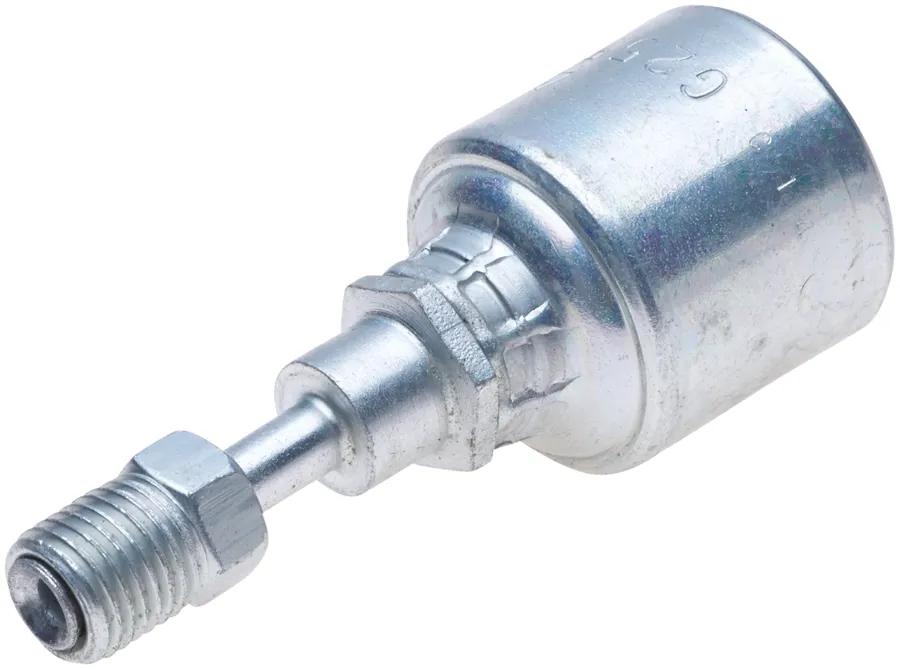

MegaCrimp SAE Male Inverted Swivel, 8G-8MIX
#GATG25500-0808
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp SAE Male Inverted Swivel |
| Cut Off (in) – C | 1-13/16 in (4.6 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-8MIX |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-19/64 in (8.38 cm) |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Seal Type | Mated Angle |
| Seat | Inverted |
| Seat Angle (degree) | 45 deg |
| Stem Hex (in.) | 13/16 in (2.06 cm) |
| Swivel | Yes |
| Type | MegaCrimp SAE Male Inverted Swivel |
Interchanges & Equivalent parts:
| 1AA8MF8 |
| FJ9514-0808S |
| G25500-0808 |
| 710006285 |
