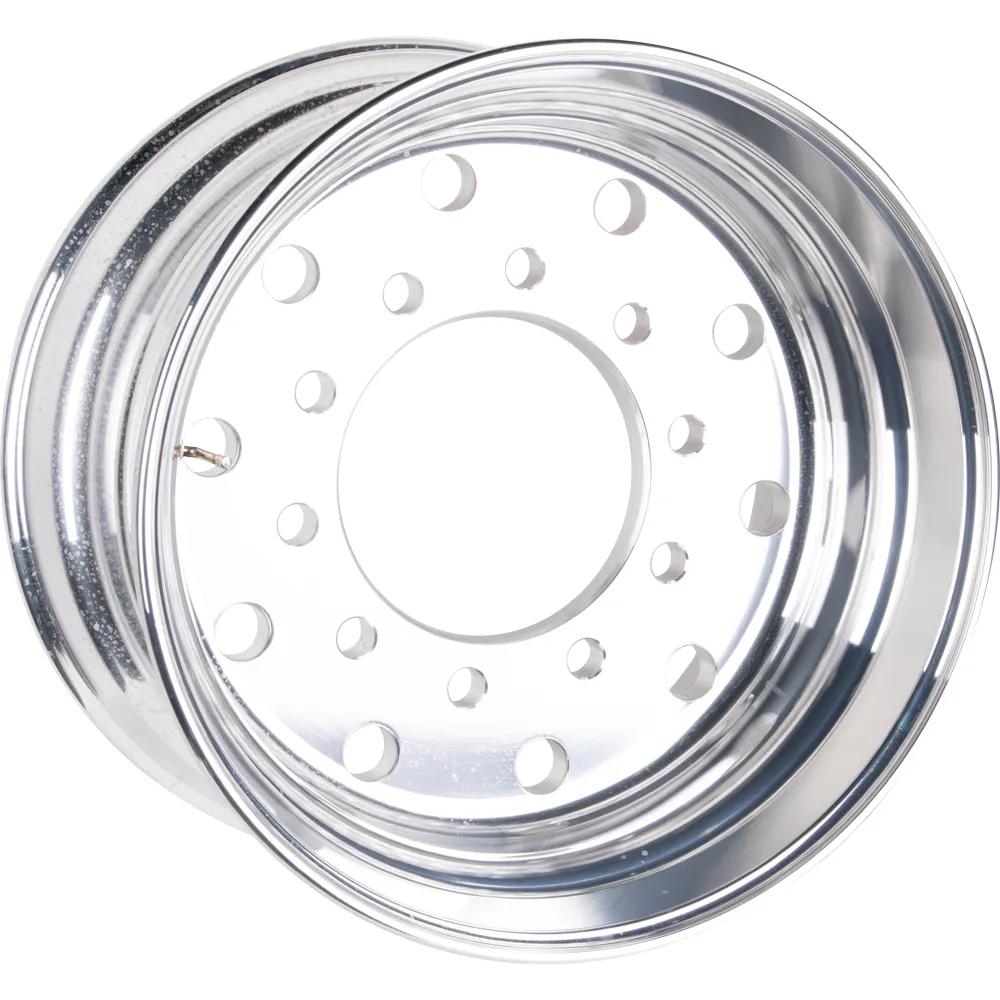

Accuride Aluminum 22.5 in. x 12.25 in. 15° Duplex Wheel, Standard Polish, 11,400 lb Max Load
#ACC29378SP
Product Overview
Wheel, 15 deg Duplex, Hub Piloted, Aluminum, Standard Polish, 285.75 in Bolt Circle Dia, 220 in Center Bore, 120 psi Max Inflation, 11400 lb Maximum Load, 10 Bolt Holes, Offset: 0.56 in, Recommended Tire Valve Number: DV543E, 22-1/2 x 12-1/4 in Wheel
Specifications
| Bolt Circle | 11-1/4 in |
| Bolt Circle Diameter | 11-1/4 in |
| Center Bore (in) | 8-45/64 in (22.11 cm) |
| Finish | Standard Polish |
| Inset (in) | 9/16 in |
| Material | Aluminum |
| Max Inflation (psi) | 120 psi (8.27 bar) |
| Max Load | 11400 lb (5170.07 kg) |
| Mounting | Hub-Piloted Dual-Mounting Two-Piece Flange Nut |
| Number of Bolt Holes | 10 |
| Offset | 9/16 in |
| Pilot | 8-21/32 in |
| Type | 15° Duplex Aluminum Wheel |
| Weight | 62 lbs (28.12 kg) |
| Wheel Size | 22-1/2 in x 12-1/4 in |
| Center Bore | 8-45/64 in |
| Maximum Load Capacity | 11400 lb |
| Max Inflation | 120 psi (8.27 bar) |
| Mounting Type | Hub Piloted |
| Recommended Tire Valve Number | DV543E |
| Rim Diameter | 22-1/2 in |
| Rim Width | 12-1/4 in |
| Product Category | Wheel |
Interchanges & Equivalent parts:
| 822627 |
| 823600 |
| ALC822627 |
| ALC823600 |
| ACC29378ANP |
