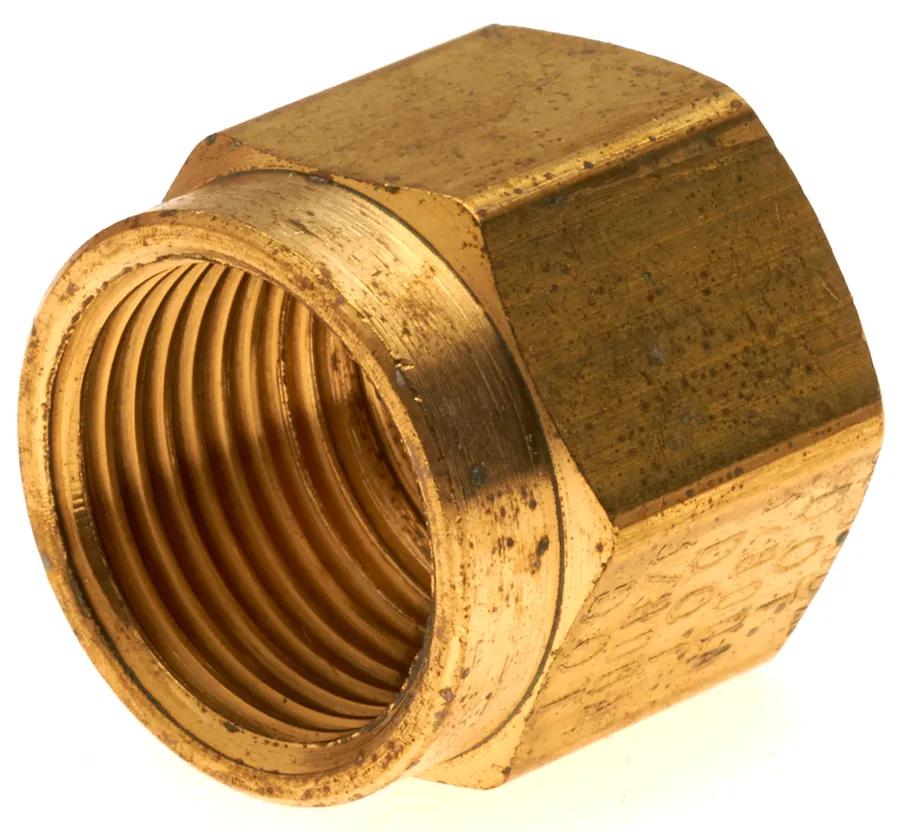

ADAPTER TSN-ABC
#GATG32060-0010
Product Overview
Recommended for Use in Air Brake Systems - Compressed Air for Suspension, Steering, Engine Transmission or Other Onboard Vehicle Applications.
Features & Benefits
- For Use w/ SAE J844 & DIN 74324 Nylon Tubing.
- For Use as a Connector on All Air Brake Systems at Locations Other Than Between Chassis Frame & Axle or Between Towed & Towing Vehicle.
- Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 & German TUV Requirements.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Easy to Assemble - Field Serviceable Fitting Consists of Four Component Parts.
Specifications
| Description industrielle | 10TSN-ABC |
| Matériel | Laiton 360 |
| Pression | 150 psi (10.34 bar) |
| Style | Replacement Component |
| Temperature | -40°F @ +200°F (-40°C @ +93°C) |
| Thread | 13/16 in-18 |
| Tube | 5/8 in (1.6 cm) |
| Tube Size | 5/8 in (1.6 cm) |
| Type | Nylon Tubing Compression Tube Sleeve Nut |
Interchanges & Equivalent parts:
| G32060-0010 |
| 725002115 |
