Cequent Performance Products

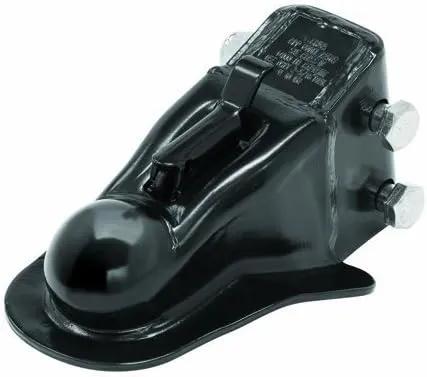

ADJUST COUPLER CAST HEAD
#UTRA256S_0303
Features & Benefits
- "Quick and easy to engage"
- Strong and secure on the road
- Quick to hook up and disconnect
- In compliance with SAE standard J684
- Designed for utility, horse/livestock, cargo and construction trailer applications, BULLDOG Couplers are the strongest in the industry. The patented cast head "Wedge-Latch" coupler design is offered in heavy--duty, A-frame, and convenient adjustable height models. Adjustable couplers assure level operation for trailers when pulled by a variety of different vehicles. The replaceable latching hardware allows for longer service life.
Specifications
| Ball Diameter | 2-5/16 in (5.87 cm) |
| Capacity | 14000 lb (6349.21 kg) |
| Class | Class IV |
| Finish | Black Powder Coat |
| Height | 4-3/4 in (12.07 cm) |
| Length | 5-29/32 in (15.01 cm) |
| Width | 9 in (22.86 cm) |
Interchanges & Equivalent parts:
| BUY0090100 |
| UTCEQA256S_0303 |
| UTA256S_0303 |
| CEQA256S_0303 |
| A256S_0303 |
| A256S 0303 |
