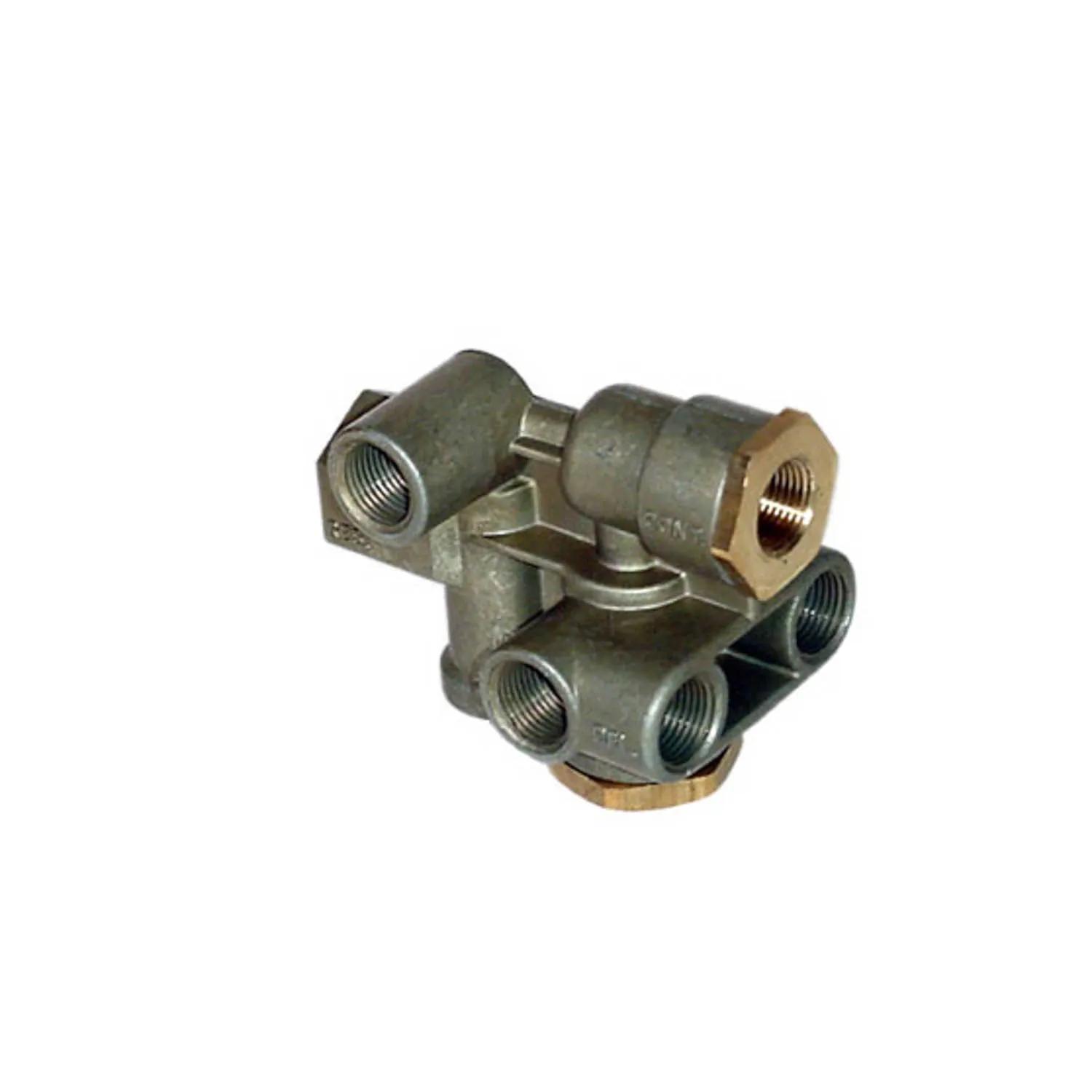

Air Brake Valves / Trailer Air Chamber - Remfd - H/D Trucks Spring Brake Control Haldex
#MID110500X
Product Overview
Haldex Midland Services products are engineered to support the performance, safety, and reliability of commercial vehicle braking and air system operations. Designed for demanding heavy-duty applications, these products are built to meet rigorous industry standards while helping fleets maintain compliance, efficiency, and consistent vehicle uptime.
Features & Benefits
- Designed for optimal function, form, and fit
- Manufactured to meet or exceed O.E.M. specifications
- Precision engineering for enhanced safety and control
- Ensures effective braking system operation in trailers
- Durable construction for long-lasting reliability in use
- Air brake trailer air chamber valve for reliable performance
Specifications
| Model # | Spring Brake Control |
Specifications
| Additional Notes | Smaller & Shaped Differently Than 110315X |
| Air Brake Relay Valve Repair Kit Part # | BEN280370N (Maintenance Kit) |
| Auxiliary Reservoir (in.) | 1/2 in (1.27 cm) |
| Control (in.) | 1/4 in PT |
| Delivery (in.) (4) | 3/8 in PT |
| Feathering | No |
| Horizontal or Vertical Ports | Horizontal |
| Notes 1 | Configuration 2S/1M |
| Number Of Detents | 2 |
| # of Holes on Mounting Flange | 2 |
| Package Quantity | 2.21 lbs |
| Emergency Relay Valve Service Inlet Port Size | 3/8 |
| Reservoir | Plugged |
| Port Location | 90° |
| Service Port Size | 1/4 in NPT |
| Spring To Neutral / Deadman Control (Y/N) | No |
| Supply Port (in.) (2) | 3/4 in |
| Valve Action | 4-Way |
| Valve Actuation | Manual Toggle |
| Valve Primary Application | Toggle Air Valve |
Interchanges & Equivalent parts:
| ESL110500X |
| 110500X |
| 767653022338 |
| HDX 110500X |
| MID110500X |
| SEA110500 |
| SEL110500 |
| 110500XBXW |
| K025778BXW |
| MBI110500X |
| ZZ110500X |
| WA110500 |
| E-SL110500X |
| AV110500 |
| 110500 |
| 1701105 |
| OTR110500 |
