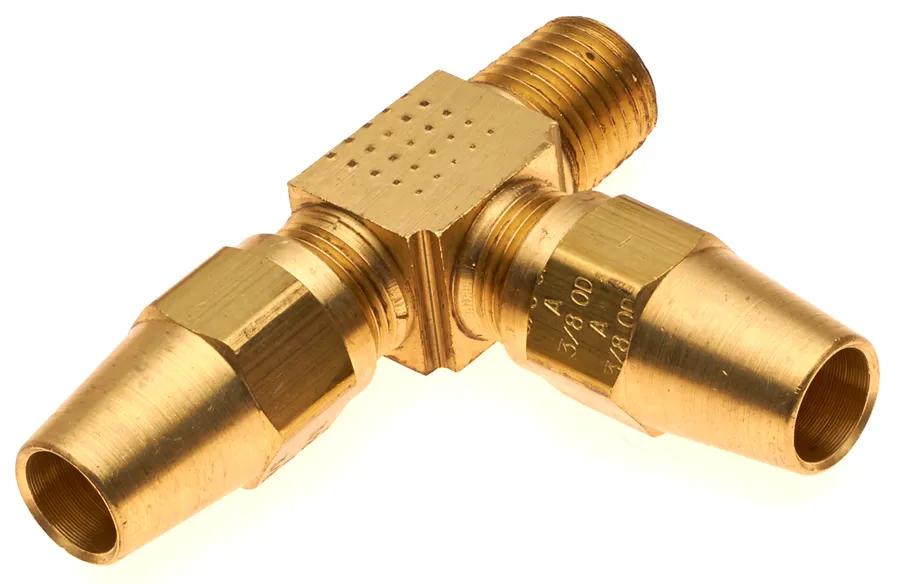

Air Fitting for Copper Tube, Tube: 3/8 in
#GATG30130-0406
Product Overview
Recommended for Compressed Air Connectors on Air Brake Systems or Suspension, Steering, Engine Transmission or Auxiliary Mechanisms.
Features & Benefits
- Meets DOT FMVSS 571.106, SAE J246 & SAE J1131 Requirements.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Versatile - Can Be Used w/ Nylon Tubing by Replacing the Long Nut & Sleeve w/ an Insert, Rigid Sleeve & Nut.
- Used w/ Copper Tubing in Air Brake Systems. Easy to Assemble - No Flaring Tools Required.
Specifications
| Industrial Description | 6ABCTC-4MP-6ABCT |
| Material | Laiton 360 |
| Pressure | 150 psi (10.34 bar) |
| Style | Pipe Thread To Tubing |
| Temperature | -60°F @ +250°F (-51°C @ +121°C) |
| Thread | 1/4 in (0.64 cm) MPT |
| Tube 1 Inside Diameter (in.) | 3/8 po (0,97 cm) |
| Tube 2 Inside Diameter (in.) | 3/8 po (0,97 cm) |
| Tube Size | 3/8 in (0.97 cm) |
| Type | Copper Tubing Compression Air Brake Run Tee to Male Pipe |
Interchanges & Equivalent parts:
| G30130-0406 |
| 725000445 |
