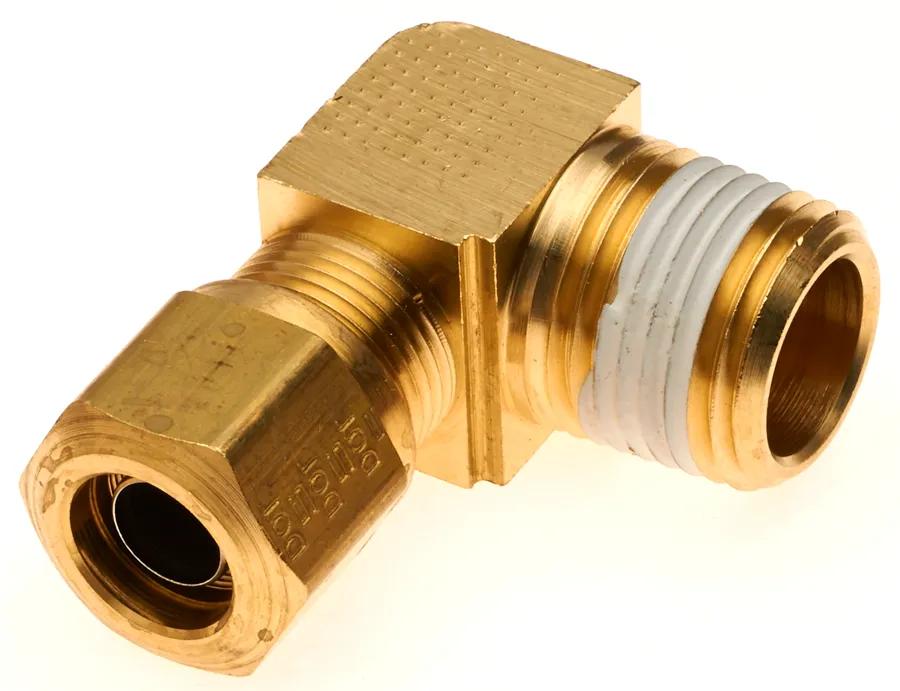

Air Nylon Tube Fitting, Tube: 5/8 in, 90 deg
#GATG32104-1008
Product Overview
Recommended for Use in Air Brake Systems - Compressed Air for Suspension, Steering, Engine Transmission or Other Onboard Vehicle Applications.
Features & Benefits
- For Use w/ SAE J844 & DIN 74324 Nylon Tubing.
- For Use as a Connector on All Air Brake Systems at Locations Other Than Between Chassis Frame & Axle or Between Towed & Towing Vehicle.
- Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 & German TUV Requirements.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Easy to Assemble - Field Serviceable Fitting Consists of Four Component Parts.
Specifications
| Angle | 90 deg |
| Industrial Description | 10ABC-8MP90 |
| Material | 360 Brass |
| Pressure | 150 psi (10.34 bar) |
| Style | Pipe Thread To Tubing |
| Temperature | -40°F @ +200°F (-40°C @ +93°C) |
| Thread | 1/2 in (1.27 cm) MPT |
| Tube | 5/8 in (1.6 cm) |
| Type | Nylon Tubing Compression Air Brake to Male Pipe - 90 deg |
Interchanges & Equivalent parts:
| G32104-1008 |
| 725002515 |
