Goodyear
Air Spring - 1 Rolling Lobe - Reversible Sleeve
#ARB1R13-130
Caractéristiques et avantages
- Chimie supérieure du caoutchouc
- Poids réduit
- Cordon mural interne
- Confort
- Longévité de l'équipement
Spécifications
Air Inlet | Raccord pneumatique à goujon combiné : goujon 3/4 po-16, raccord pneumatique 1/4 po NPTF |
Type de ressort pneumatique | 1 Solid Sleeve |

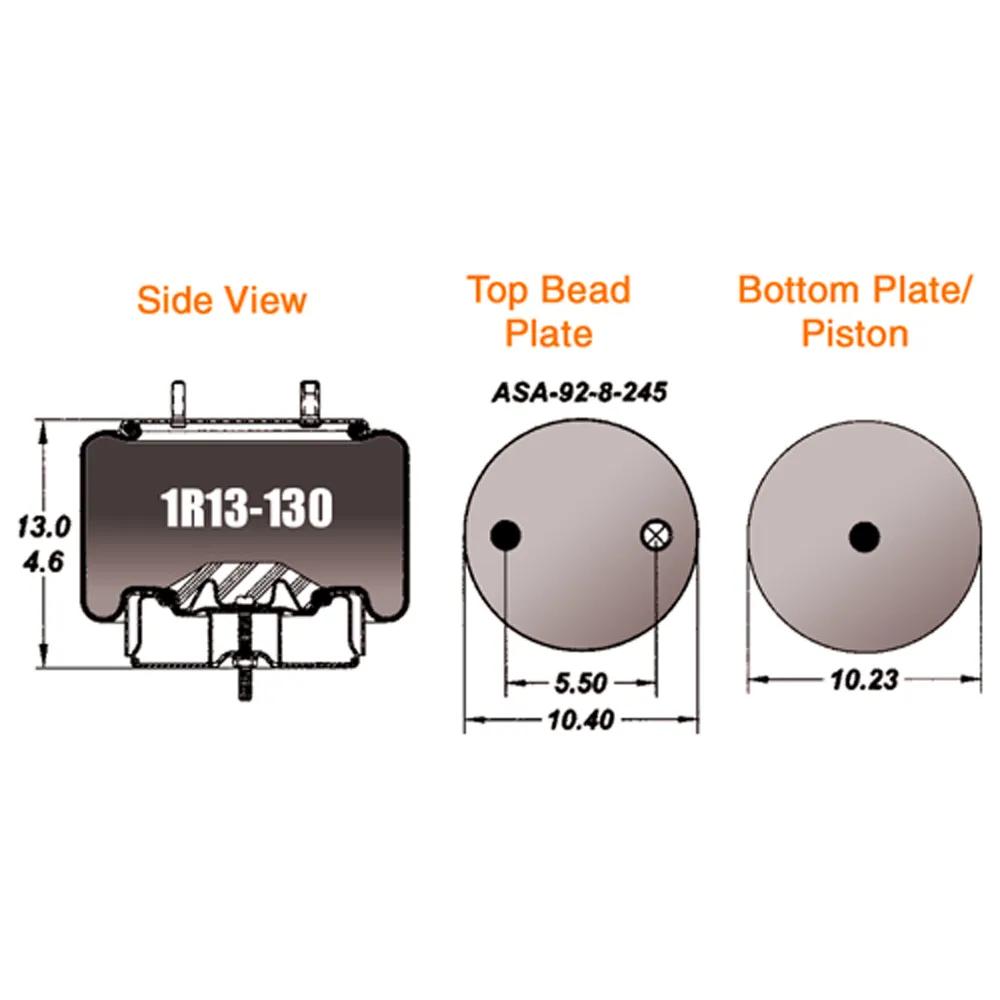

Bead Plate (Top) & Deflated Bellows O.D. | 4,6 po à 13 po (11,68 cm à 33,02 cm) |
Dimension centre à centre des boulons de montage d'assiette de talon (haut) | 5-1/2 po (13,97 cm) |
Bellows | Goodwill 566263055 |
Bottom Bead Plate Hardware Key | Bold ou Goujon 1/2 po-13 |
Bottom Plate Alignment | Parallèle |
Bottom Plate Diameter | 10 po (25,4 cm) |
Bottom Plate Hole Stud Qty | 1 |
Bumper | Oui |
Longueur comprimée | 4-19/32 po (11,66 cm) |
Contitech Bellow # | 10 10.5AV-12 |
Longueur prolongée | 14 po (35,56 cm) |
Firestone Bellows Number | 1T17BB-2 |
Goodyear Bellow # | 566263055 |
Hauteur maximale | 13 po (33,02 cm) |
Hauteur de piston | 3-13/64 po (8,13 cm) |
Piston Number | 566-20-7-230 |
Piston Type | Composite |
Type de plaque | Composite |
Top Bead Plate Hardware Key | Bold ou Stud 1/2-13 po |
Top Plate Diameter | 10-19/64 po (26,16 cm) |
Top Plate Hole Count | 2 |
Triangle Bellows Number | 6396 |
Type | Ressort pneumatique |
Poids | 13,2 lb (5,99 kg) |
Interchanges et pièces équivalentes:
1R13-130, A2258F1410, AS8729, FS8729, G2298729200, GBH1R13130, GTK-358-8729, GY1R13130, GYR1R13130, RL879290, 202796, AB1DK25B-8729, EFS8729, FC108729, W01 358 8729, W013588729, 1R13130, 8729, CON77977, CON77977, GBH1R13130, 1R13-130, FS8729, FC108729, G2298729200, GTK-358-8729, 1R13130, EFS8729, GY1R13130, GYR1R13130, AB1DK25B-8729, W013588729, AS8729, 8729, A2258F1410, 202796, RL879290, W01 358 8729
