Air Spring - 1T Reversible Sleeve - 8-3/4 in Compressed Length - 23 in Extended Length - Firestone Airide™ 1T15 X-SERIES
Product Overview
Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 8-3/4 in Compressed Length, 23 in Extended Length, 10.62 in Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
- Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

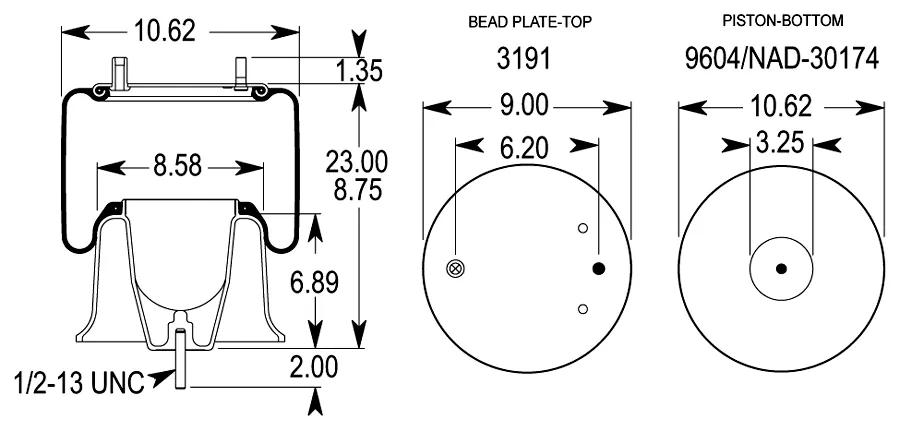

Specifications
| Entrée d'air | 1/4 po NPT |
| Type de ressort pneumatique | Manchon réversible 1T |
| Application | Freightliner 681-320-0017, A16-14004-000 (aluminium), A16-17574-001 (sans support), A16-17574-002 (avec support), Piston Freightliner 16-13840-000 (plastique) - Voir W01-358-9780, Piston Freightliner 16-16773-000 (acier) - Voir W01-358-9782, A16-17574-001 A16-17574-002 |
| Plaque de talon (haut) et soufflet dégonflé diamètre extérieur | 9 po à 10,12 po |
| Diamètre de la plaque inférieure | 10-5/8 po |
| Configuration du montant inférieur | 1/2 po-13 UNC |
| Longueur comprimée | 8-3/4 po |
| Diamètre | 10-5/8 po |
| Longueur en extension | 23 po |
| Numéro de soufflet Firestone | 1T15 X-SERIES (Remplace 1T15ZR-6) |
| Hauteur de piston | 6-29/32 po |
| Top Bead Plate Hardware Key | Boulon ou goujon 1/2-13 po |
| Top Plate Diameter | 9 po |
| Weight | 13,25 lb (6,01 kg) |
| Width | 10,62 po |
| Product Category | Ressort pneumatique |
Interchanges & Equivalent parts:
| 1R12-603 |
| 352-9781 |
| 352-9781AG |
| AB9781 |
| W01-377-8529 |
| 566-24-3-274 |
| ZAGA9781 |
| 16-13840-000 |
| 16-16773-000 |
| 1R12-1082 |
| ABP N32 019781 |
| AS PR9MR16-9781 |
| AS9781 |
| FI W01 358 9781 |
| FLT1R12603 |
| 1000-AS9781 |
| 16-19466-000 |
| FLTA1R12603 |
| FSIW013589781 |
| GTK-358-9781 |
| RC AS9781 |
| S-20179 |
| TAS9781 |
| TWDW013589781 |
| W01-377-8527 |
| W01-377-8536 |
| W013589781 |
| 1R12 603 |
| 681 320 00 17 |
| 9.10 S-16 A382 |
| A16-14004-000 |
| FS9780 |
| 1R12603 |
| A6813200017 |
| AS9780A |
| W013778536 |
| 16-14004-000 |
| 16-17575-000 |
| 1613840000 |
| 1614004000 |
| 1617575000 |
| 1619466000 |
| 1R121082 |
| 64266 |
| 681-320-0017 |
| 9 10S-16 A 382 |
| 681-3200-017 |
| 6813200017 |
| 85101151 |
| A16-14004-001 |
| A1614004000 |
| A1614004001 |
| A1615443000 |
| SC2750 |
| W01-377-9781 |
| W01-377-9783 |
| W013778527 |
| W013778529 |
| W013779781 |
| W013779783 |
| W01-358-9781 |
| A16-17574-001 |
| A16-17574-002 |
