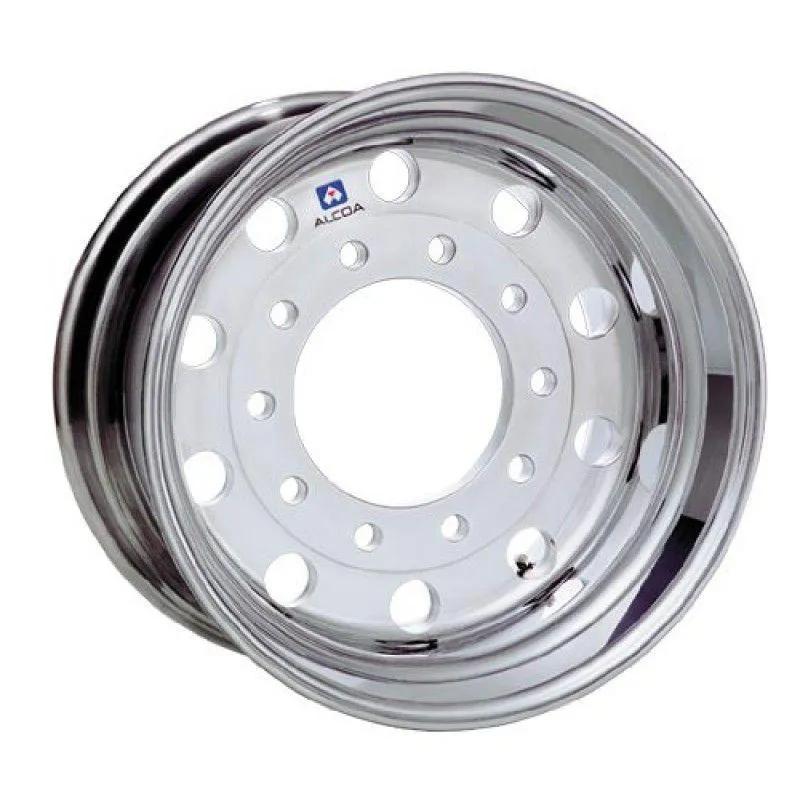

Alcoa Aluminum Wheel 22.5 in. x 12.25 in. High Polish Finish, 12,300 lb Max Load
#ALC823627
Product Overview
A true lightweight heavyweight. This wheel utilizes proven technology to reduce weight and optimize performance. Ideal for refuse collection, mining, and other heavy haul applications.Wheel, Hub Piloted, High Polish, 285.75 mm Bolt Circle Dia, 220.1 mm Center Bore, 26 mm Hole, 130 psi Max Inflation, 12300 lb Maximum Load, 10 Bolt Holes, Recommended Tire Valve Number: TR553E, 22-1/2 x 12-1/4 in Wheel
Features & Benefits
- Valve TR555E or TR553E
- Bolt Hole Diameter 1.053 in
- High Polish Finish
- 12,300 lb Maximum Load Capacity
Specifications
| Bolt Circle Diameter | 285.75 mm |
| Center Bore (in) | 8-43/64 in (22.03 cm) |
| Finish | High Polish |
| Hole Size | 26 mm |
| Material | Aluminum |
| Max Inflation (psi) | 130 psi (8.96 bar) |
| Number of Bolt Holes | 10 |
| Offset | 2-3/4 in |
| Weight | 62 lbs (28.12 kg) |
| Wheel Size | 22-1/2 in x 12-1/4 in |
| Center Bore | 220.1 mm |
| Maximum Load Capacity | 12,300 lb |
| Max Inflation | 130 psi (8.96 bar) |
| Mounting Type | Hub-Piloted Wheels |
| Recommended Tire Valve Number | TR553E |
| Rim Diameter | 22-1/2 in |
| Rim Width | 12-1/4 in |
| Product Category | Wheel |
Interchanges & Equivalent parts:
| 29683ANP |
| 823629 |
| 823650 |
| 823659 |
| ALC823629 |
| ACC29683ANP |
